ESP32 TFT Touchless LCD Display Module Arduino LVGL RGB 65K Color
| Place of Origin | china |
|---|---|
| Model Number | ESP32-2432S028N |
| Minimum Order Quantity | 30PCS |
| Price | ￥75/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.8inch | Display Color | RGB 65K Color |
|---|---|---|---|
| Resolution | 240*320 | Touch | No Touch |
| Driver Chip | ILI9341 | Brightness | 300 Nits |
| Operating Temperature(°C) | -20℃~70℃ | Storage Temperature(°C) | -30℃~80℃ |
| High Light | Touchless LCD Display Module,Arduino LCD Display Module,LVGL TFT LCD Module |
||
Product Description

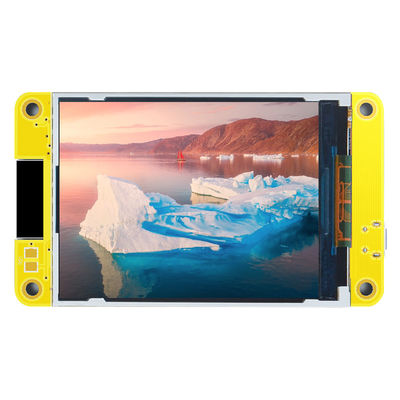

ESP32 TFT Touchless LCD Display Module Arduino LVGL RGB 65K Color
ESP32 is a microcontroller that provides both Wi Fi and Bluetooth connectivity, making it an excellent choice for IoT projects that require wireless connectivity. With a 2.8 inch color touch screen, users can build an easy-to-use and aesthetically pleasing custom control platform for their IoT projects.
|
Specifications |
|
|
SKU |
ESP32-2432S028N |
|
Screen Size |
2.8(inch) |
|
Module Interface |
4-wire SPI |
|
Resolution |
240*320 (Pixel) |
|
Touch mode |
No touch |
|
Visual angle |
12:00 o'clock |
|
Driver IC |
ILI9341 |
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Operating Voltage |
3.3V |
|
Product Weight(Package containing) |
65(g) |
|
Display Color |
RGB 65K color |
|
Type |
TFT |
Features
1. ESP-WROOM-32 module
2. 2.8-inch color touch screen
3. Resistance touch
4. The board supports Wi-Fi and Bluetooth connectivity,
5. The board has 8MB of PSRAM and 16MB of flash memory
6. Arduino and MicroPython
Application:
1. Smart Home: the module can be paired with other smart devices, such as smart lamps, smart sockets and smart door locks, for Home automation control.
2. Industrial Automation: This module can be used to monitor and control industrial equipment, such as robots, conveyor belts and industrial robots.
3. Medical Devices: this module can be used for medical devices such as sphygmomanometers, blood glucose meters, and ECG machines.
4. Smart Home: Through this module, users can easily control home devices, such as smart speakers, Smart TV and Smart Door Locks.
5. E-commerce: this module can be used for e-commerce applications such as vending machines and self-payment terminals.
ESP32-2432S028R Product introduction
1. Microcontroller: The ESP32 is a highly capable microcontroller with a dual-core 32-bit processor, clocked at up to 240MHz. This makes it powerful enough to handle complex tasks and applications.
2. Memory: The board has 8MB of PSRAM (pseudo-static RAM) and 16MB of flash memory. This provides ample storage space for data and applications, and allows for fast program execution.
3. Display: The standard 2.8-inch TFT screen has a resolution of 320x240 pixels, which is suitable for displaying text, graphics, and other visual elements.
4. Touchscreen: The board is equipped with a resistor TP touchscreen, which provides a simple and cost-effective option for touch interaction. The touchscreen can be used to create user interfaces that are intuitive and easy to use.
5. Download: The board supports one-key automatic download, which makes it easy to program and update the firmware. This feature allows developers to quickly iterate and test their applications.
6. Graphics library: The board includes the LVGL (Light and Versatile Graphics Library) demo, which allows developers to create user interfaces, animations, and other visual effects. LVGL is a powerful and flexible graphics library that is easy to use and customize.
7. Programming language: The board is compatible with Arduino and MicroPython, which are popular programming languages for IoT and embedded applications. This allows developers to choose the programming language that best suits their needs.
8. Examples: The board comes with Arduino examples, which provide a starting point for developing applications. These examples can be customized and modified to fit specific requirements.
FAQ
Q : What IoT projects can benefit from the ESP32-2432S028R development board?
A : Intelligent home automation, agricultural monitoring, environmental monitoring, health monitoring, industrial automation.
Q : About Technical Support?
A : Contact customer service for technical support
