. Inch LCD TFT Display Module

Parallel LCD Display
December 29, 2025
Category Connection: Parallel LCD Display
Chat Now Contact Us
Tags:
#800x480 Parallel LCD Display #RGB 7 Inch Capacitive Touch Screen #50PIN 7 inch capacitive touch screen display
Brief: In this video, we provide an informative walkthrough of the ILI6485A 4.3-inch TFT LCD display module. Learn how this solution can streamline typical workflows and improve reliability with its high-brightness resistive touch screen, clear 480x272 resolution, and versatile parallel interface for industrial applications.
Related Product Features:
  • Features a 4.3-inch TFT LCD screen with a sharp 480x272 resolution for clear image quality.
  • Equipped with a resistive touch panel for reliable input in various environments.
  • Utilizes the ILI6485A driver IC for stable performance and efficient control.
  • Offers high surface brightness of up to 1000 cd/m² for excellent visibility.
  • Supports a parallel RGB interface for straightforward integration with host systems.
  • Compact module dimensions of 105.4mm x 67.1mm x 2.9mm for space-constrained designs.
  • Operates on a 3.3V input voltage, suitable for low-power applications.
  • Constructed with a 3H hardness surface treatment for enhanced durability.
FAQs:
  • What is the screen size and resolution of this LCD module?
    This module features a 4.3-inch TFT LCD display with a resolution of 480 (RGB) x 272 pixels, providing clear and detailed visuals.
  • What type of touch panel does this display use?
    This display module comes with a resistive touch screen, offering reliable and responsive input for various industrial and commercial applications.
  • What is the typical brightness level of this display?
    The display offers a high typical surface luminance of 1000 cd/m², ensuring excellent visibility even in brightly lit conditions.
  • What interface does this module use for connectivity?
    It utilizes a parallel RGB interface, specifically a 40-pin connection, making it compatible with a wide range of host controllers and systems.
Related Videos

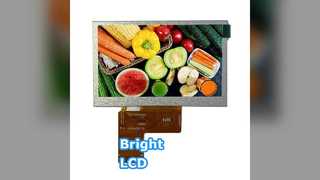

. Inch TFT LCD Display 80x7 RGB 0 Bright 00:03

. Inch TFT LCD Display 80x7 RGB 0 Bright
Parallel LCD Display
December 29, 2025

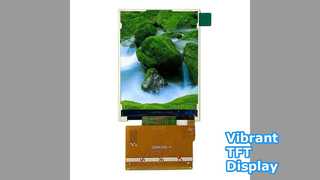

ILI9341V TFT Display 240x320 LCD Module 00:03

ILI9341V TFT Display 240x320 LCD Module
Parallel LCD Display
December 29, 2025

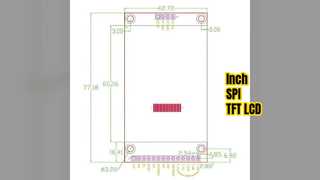

. Inch SPI TFT LCD Touch Display ILI 0x0 00:09

. Inch SPI TFT LCD Touch Display ILI 0x0
SPI Display Module
December 29, 2025

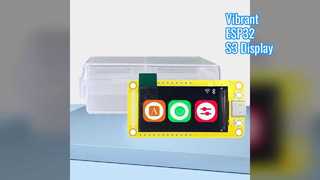

ESP32 S3 Smart Display 170x320 IPS LCD 00:15

ESP32 S3 Smart Display 170x320 IPS LCD
ESP32 Display Module
December 29, 2025

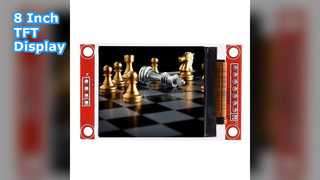

.8 Inch SPI TFT LCD Module ST77 8x60 Display 00:03
