.8 Inch SPI LCD TFT Display 0x0 ILIV Module

SPI LCD Display
December 30, 2025
Category Connection: SPI LCD Display
Chat Now Contact Us
Tags:
#Gc9a01 Display Screen Without Touch #Capacitive Touch Ili9488 Touch Screen #Ili9488 Touch Screen 320*480
Brief: Watch as we walk through the full process, from initial setup to real-world testing of the 2.8-inch SPI LCD TFT Display. This video demonstrates how to connect and operate the ILI9341V driver-based module using the 4-wire SPI interface, showcasing its 240x320 resolution and 65K color performance in various application scenarios.
Related Product Features:
  • 2.8-inch TFT LCD display with a high resolution of 240x320 pixels for clear and detailed visuals.
  • Utilizes the ILI9341V driver IC for reliable and efficient display control.
  • 4-wire SPI interface for simplified and versatile integration with microcontrollers and systems.
  • Operates at a low voltage of 3.3V, making it suitable for a wide range of electronic projects.
  • Industrial-grade quality ensures long-term stability and reliability in demanding environments.
  • Features a 65K RGB color palette for vibrant and accurate color representation.
  • Designed without touch functionality, focusing on high-quality display performance.
  • Wide operating temperature range from -20°C to 60°C for use in various conditions.
FAQs:
  • What is the interface used for this 2.8-inch LCD module?
    This module uses a 4-wire SPI interface for communication, which includes pins for clock (SCL), data (SDA), chip select (CS), and data/command selection (D/C), making it easy to interface with most microcontrollers.
  • Does this display module support touch functionality?
    No, this specific module is designed without touch capabilities, focusing on providing a high-quality visual display with its 240x320 resolution and 65K colors.
  • What is the operating voltage and temperature range for this display?
    The module operates at 3.3V and has an operating temperature range of -20°C to 60°C, with a storage temperature range of -30°C to 70°C, ensuring reliability in various environmental conditions.
Related Videos

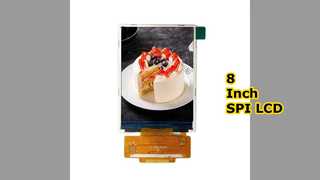

.8 Inch SPI LCD TFT Display ILIV 0x0 00:03
