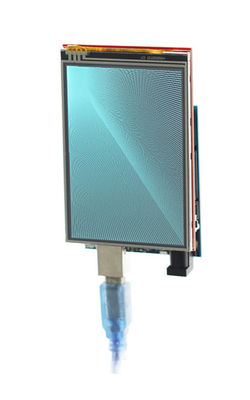

480x320 Arduino Display Module 3.5 Inch Lcd Display For UNO MEGA2560 Board

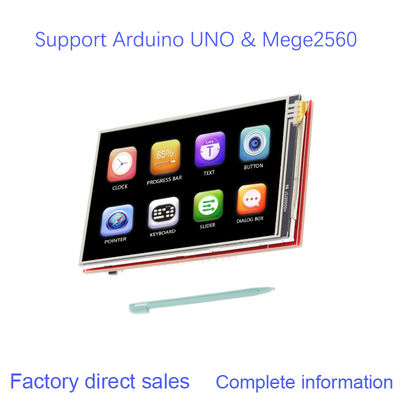

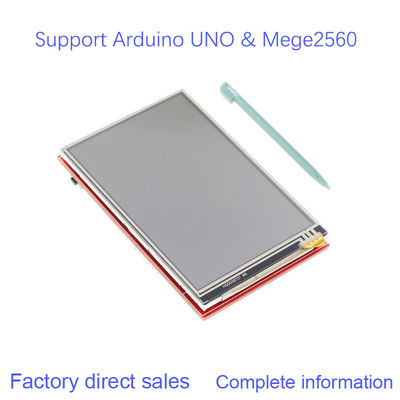

3.5 inch Resistive touch 480*320 3.5" TFT LCD Module Screen Display ILI9488 Controller for Arduino UNO MEGA2560 Board

Introduction

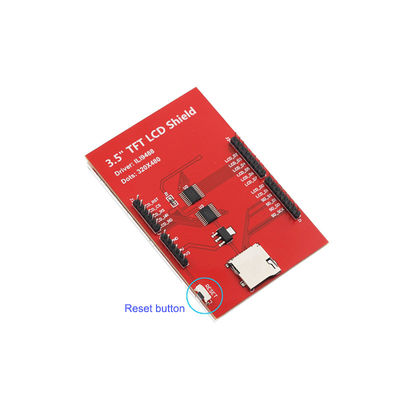

This touch screen module with high resolution can reach 480 x 320, and TF (SD) card slot is designed on the back of the board, so that you can easily insert the card. The touch screen uses resistance touch, and the touch chip is XPT2046, which is very sensitive and convenient to use. There is a level conversion chip on the board, which can be directly inserted with the arduino motherboard. The default controller is ili9488. You can also contact us to customize other types of touch. We provide a large number of sample programs for customers to download and learn.

Product Description

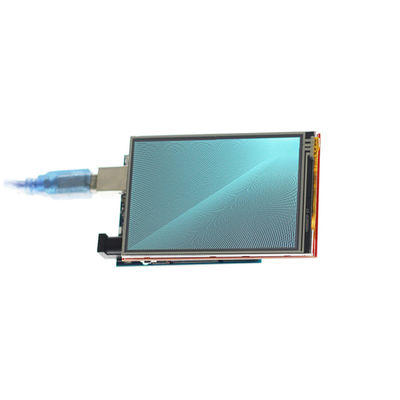

• Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
• 480X320 resolution, clear display, support for touch function
• Support 16-bit RGB 65K color display, display rich colors
• 8-bit parallel bus, faster than serial SPI refresh
• On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
• Easy to expand the experiment with SD card slot
• Provides an Arduino library with a rich sample program
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support

Product Parameters

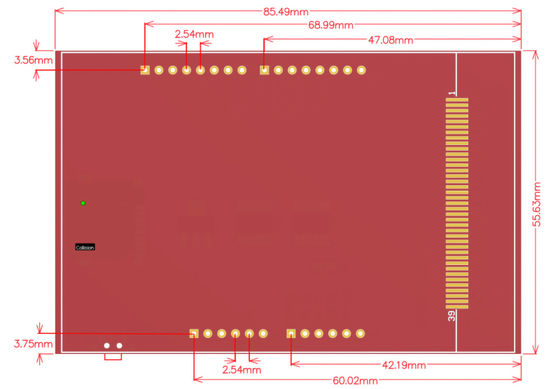

Interface Definition
