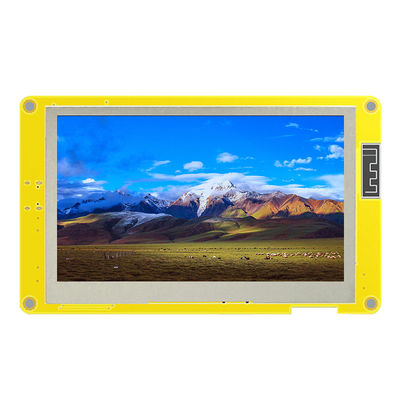

ESP32-S3 Tft Lcd Module 480*270 HMI 4.3 Inch Tft Lcd Display Arduino LVGL
| Place of Origin | china |
|---|---|
| Model Number | ESP32-4827S043N |
| Minimum Order Quantity | 30PCS |
| Price | ￥108/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 480*272 |
|---|---|---|---|
| Touch | Without Touch | LCD Panel | TN |
| Name | ESP32-4827S043N | Weight | 140 (g) |
| Highlight | ESP32-S3 Tft Lcd Module,Tft Lcd Module 480*270 HMI,4.3 Inch Tft Lcd Display Arduino LVGL |
||
Product Description

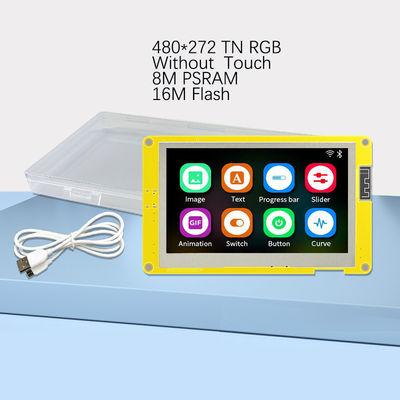

4.3 inch Without Touch 4.3" 480*270 ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module
ESP32 development board-8M PSRAM 16M Flash, standard 4.3-inch TFT screen and Without touch or Resistor touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples
Product Usage
-
1. Generic Low-power IoT Sensor Hub
2. Generic Low-power IoT Data Loggers
3. Cameras for Video Streaming
4. Over-the-top (OTT) Devices
5. USB Devices
6. Speech Recognition
7. Image Recognition
8. Mesh Network
9. Home Automation
10. Smart Building
11. Industrial Automation
12. Smart Agriculture
13. Audio Applications
14. Health Care Applications
15. Wi-Fi-enabled Toys
16. Wearable Electronics
17. Retail & Catering Applications
model:ESP32-4827S043N
Size:4.3 inch
Resolution:480*272
Touch mode:Resistive touch
Viewing angle:TN
Interface mode:16bit RGB
Operating temperature:-20°-70°
Weight:140g
External dimensions:123.0*74.0mm
Display size:95.04*53.86mm
Operating voltage:5V
Backlight parameters:6 in parallel and 2 in series
Pin definition:type-c
Introduction
The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.
ESP32-S3-wroom-1 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX7 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.
In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.
Product description
This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.
Features
●4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors·
●480X272 resolution
●The sample program has been programmed in the factory and can be plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate rapid secondary development
●Support one-click download program·
●Military-grade process standards, long-term stable work·
