800x480 Tft Lcd Display Arduino IPS ESP32-S3 HMI LVGL 4.3 Inch Lcd Display
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S043N_I |
| Minimum Order Quantity | 30PCS |
| Price | ￥145/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Without Touch | LCD Panel | IPS |
| Interface Mode | 16bit RGB | Name | ESP32-8048S043N_I |
| High Light | 800x480 Tft Lcd Display Arduino,Tft Lcd Display Arduino IPS ESP32-S3,HMI LVGL 4.3 Inch Lcd Display |
||
Product Description

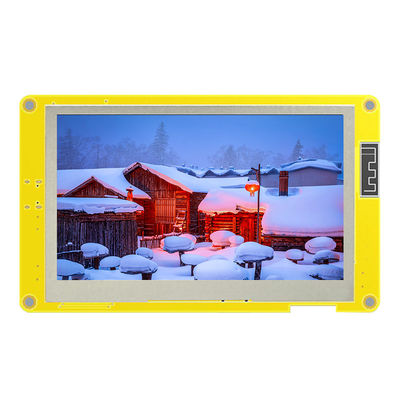

4.3 inch Without Touch 800*480 IPS ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module
ESP32 development board-8M PSRAM 16M Flash, standard 4.3-inch TFT screen and Without touch or Resistor touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples
model:ESP32-8048S043N_I
Size:4.3 inch
Resolution:800*480
Touch mode:Without touch
Viewing angle:IPS
Interface mode:16bit RGB
Operating temperature:-20°-70°
Weight:140g
External dimensions:123.0*74.0mm
Display size:95.04*53.86mm
Operating voltage:5V
Backlight parameters:6 in parallel and 2 in series
Pin definition:type-c
Introduction
The ESP32-S3 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.
ESP32-S3-wroom-1 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX7 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.
In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.
Product description

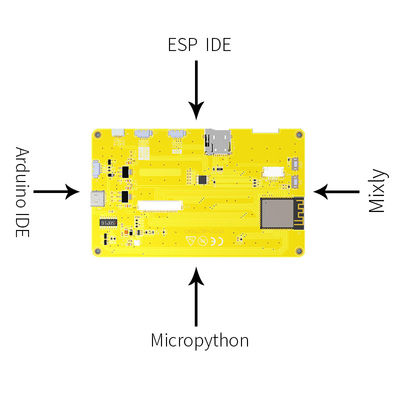

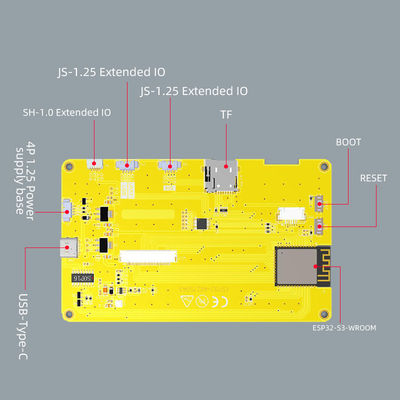

This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.
Features
●4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors·
●800X480 resolution

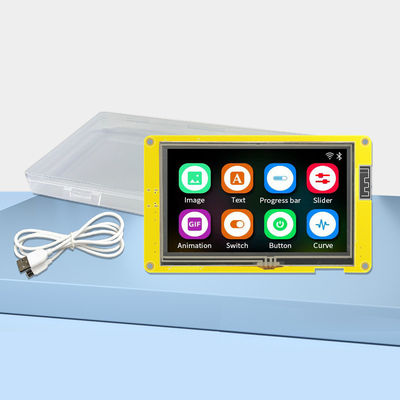

●The sample program has been programmed in the factory and can be plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate rapid secondary development
●Support one-click download program·
●Military-grade process standards, long-term stable work·
