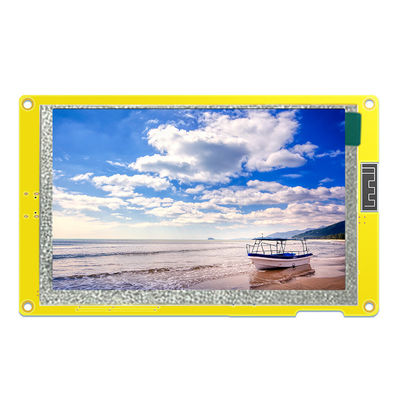

5.0 Inch Esp32 Tft Lcd Display HMI Arduino Tft Module IPS LVGL WIFI Bluetooth

5.0 Inch Esp32 Tft Lcd Display HMI Arduino Tft Module IPS LVGL WIFI Bluetooth

Model Number: ESP32-8048S050N
MOQ: 30PCS
Price: ¥168/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Place of Origin:
china
Size:
5.0 Inch
Resolution:
800*480
Touch:
Without Touch
PCB Color:
Yellow
Driver Chip:
ST7262
Module Size:
137.0*84.0(mm)
Storage Temperature:
-30℃~80℃
Display Color:
RGB 65K Color
Highlight:

5.0 Inch Esp32 Tft Lcd Display

,

Esp32 Tft Lcd Display HMI Arduino

,

Tft Module IPS LVGL WIFI Bluetooth

Product Description
5.0 inch Without Touch 5 " IPS 800*480 ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT


ESP32 development board-8M PSRAM 16M Flash, standard 5.0-inch IPS TFT screen ;ESP32 = MCU + WiFi + Bluetooth
ESP32 support one-key automatic download, provide LVGL demo and arduino examples


ESP32-8048S050 development board is basedon the company's ESP32-S3 controller dual-coreCPU,
clock frequency up to 240MHZ,integrates awealth of resource peripherals, high-speed SDIOSPI,UART and other functions, supports automatic download


Features
●5.0-inch color screen, support 16 BIT RGB 65K color display, display rich
colors
●800X480 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work

ESP32-ESP32-8048S050 motherboard introductior
ESP32 = MCU + WiFi + Bluetooth
ESP32-8048S050 development board is basedon the company's ESP32-S3 controller, dual-coreCPU, clock frequency up to 240MHZ,
integrates awealth of resource peripherals, high-speed SDIOSPI,
UART and other functions, supports automatic download
