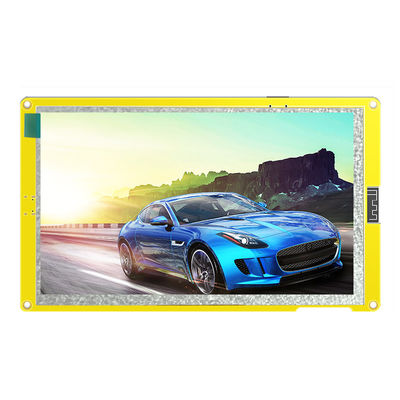

7.0 Inch ESP32 Display Module 16M Flash Ips Tft Lcd Display Module ESP32-S3
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070N |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S070N | Size | 7inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Without Touch |
| PCB Color | Yellow | Display Color | RGB 65K Color |
| Driver IC | EK9716 | Effective Display Area | 153.84* 85.63(mm) |
| Storage Temperature | -30℃~80℃ | ||
| Highlight | 7.0 Inch ESP32 Display Module,ESP32 Display Module 16M Flash,Ips Tft Lcd Display Module ESP32-S3 |
||
Product Description
7.0 inch wihthout touch RGB LCD 7 " 800*480 TN Smart Display Screen TFT Module ESP32-S3 8M PSRAM 16M Flash WIFI
ESP32 development board-8M PSRAM 16M Flash, standard 7.0-inch TFT screen and Without touch , support one-key automatic download, provide LVGL demo and arduino examples
ESP32-8048S070 development board,which gives fullplay to the development of the Internet of Things, is areal Internet of Things development tool with a control-lable display screen, which can be used for APP remotecontrol, remote environmental data collection, remotedata fusion, remote Parameter settings and other loT developmentapplications.
Features
●7.0-inch color screen, support 16 BIT RGB 65K color display, display rich
colors
●800X480 resolution
●The sample program has been programmed in the factory and can be
plugged in

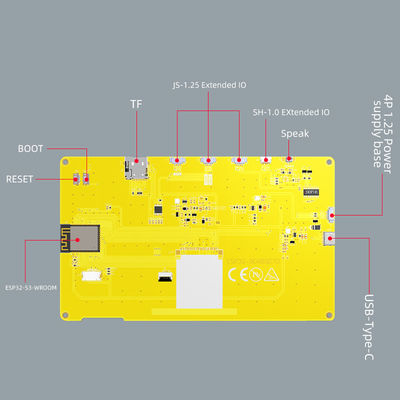

●With TF card slot for easy expansion storage

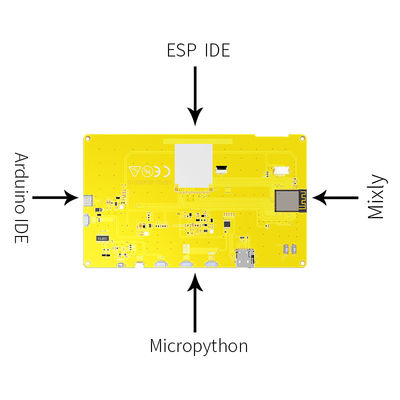

●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work
●7.0-inch color screen, support 16 BIT RGB 65K color display, display rich
colors
●800X480 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work
ESP32-S3-WROOM-1 is a powerful, generic Wi-Fi + Bluetooth LE MCU modules that have Dual core CPU , a rich set of peripherals, provides acceleration for neural network computing and signal processing workloads. They are an ideal choice for a wide variety of application scenarios related to AI + Internet of Things (AIoT), such as wake word detection and speech commands recognition , face detection and recognition, smart home, smart appliance, smart control panel, smart speaker etc.
ESP-32-S3 Bluetooth e WIFI Dual Core CPU a Basso Consumo energetico MCU modulo ESP-32-S3
Parameter:
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Application
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
