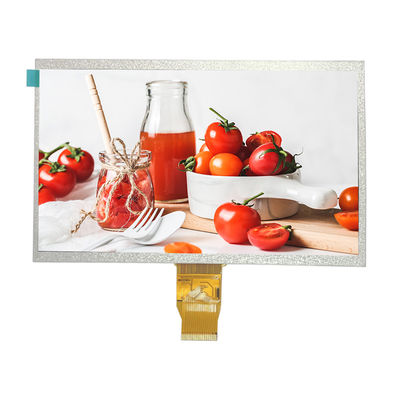

350 Bright 7 Inch Resistive Touch Screen 480x800 7 Inch Tft Display Module 50PIN RGB
| Place of Origin | China |
|---|---|
| Model Number | JC8048B050R |
| Minimum Order Quantity | 500 |
| Price | ￥75/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 7.0inch | Models | JC8048B050R |
|---|---|---|---|
| Resolution | 800*480 | Touch | Resistive Touch |
| Brightness | 350 Nits | Panel Type | TN |
| Highlight | 350 Bright 7 Inch Resistive Touch Screen,7 Inch Resistive Touch Screen 480x800,7 Inch Tft Display Module 50PIN RGB |
||
Product Description
7 inch Resistive touch 800xRGBx480 Driver 350 bright TFT lcd display module 50PIN RGB
Introduction
This standard 7.0 inch LCD module is with standard PCAP, the performance is very good.
Type: a-si TFT, transmissive, normally black, IPS
Resolution: 800*480
Brightness: 520 nits
LCM+CTP Outline Dimension: 190.08(H) x 121.92(V) x5.13(D) mm
Active Area: 153.84(W) * 85.63 (H) mm
Interface: LVDS
Viewing Angle: 70 60 70 70 Deg
Color Depth: 16.7M
Input Voltage: 3.3V
Backlight Voltage: 9.6V
Backlight Type: 30 LEDs, 200 mA
Surface Treatment: anti-glare
Driver IC: ILI6122
Touchscreen: capacitive touch/resistive touch
SPEC
