IPS 4.3 Tft Lcd Touch Screen 800xRGBx480 40PIN 350 Bright 4.3 Inch Tft Lcd Module
| Place of Origin | China |
|---|---|
| Model Number | JC8048B043N |
| Minimum Order Quantity | 500 |
| Price | ￥55/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Models | JC8048B043N_I | Size | 4.3inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Without Touch |
| Panel Type | IPS | Driver IC | ST7262 |
| Highlight | IPS 4.3 Tft Lcd Touch Screen 40PIN,40PIN 4.3 Inch Tft Lcd Module,350 Bright 4.3 Inch Tft Lcd Module |
||
Product Description

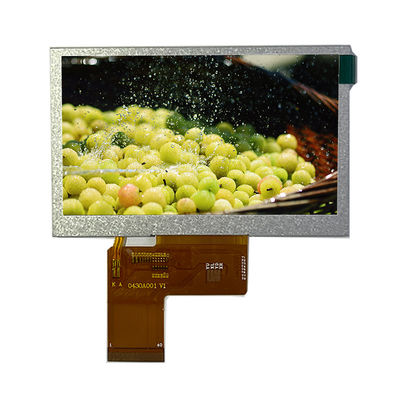

4.3 inch IPS 800xRGBx480 Without touch 40PIN RGB ST7262 Driver 350 bright TFT lcd display module
4.3 inch IPS TFT LCD Display Module :800x480 Pixels ,IPS Full Viewing Angle,High Brightness 300-1000 Nits ；Compatible controlled board optional(VGA, CVBS, video signal input / Multi-functional OSD menu / Remote control function ( available) / Controller IC ST7262
Product information:
| Module No.: | JC8048B043N_I |
| Screen Size: | 4.3 inch |
| Resolution: | 800x RGB x 480 |
| Panel Type: | IPS |
| Display Mode: | Normally White |
| Module Size: | 105.5 x 67.2 x 4.1 mm |
| TP Size: | 99 x 65 mm |
| Active Area: | 95.04 x 53.86 mm |
| Driver IC: | ST7262 |
| Backlight: | 12 LED Light |
| Interface: | RGB 24 Bit |
| Connector: | FPC |
| Pin Number: | 40 |
| Pix Arrangement: | RGB-stripe |
| Number of Colors: | 16.7M |
| Viewing Direction: | 6 O’Clock |
| Operating Temperature: | -20~+70℃ |
| Storage Temperature: | -30~+80℃ |
