IPS ESP32 Display Module 4.3 Inch Resistive Touch 800x480 Tft Display Module
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S043R_I |
| Minimum Order Quantity | 30PCS |
| Price | ￥128/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Resistive Touch | LCD Panel | IPS |
| Name | ESP32-8048S043R_I | External Dimensions | 123.0*74.0mm |
| High Light | IPS ESP32 Display Module,ESP32 Display Module 4.3 Inch Resistive,800x480 Tft Display Module |
||
Product Description

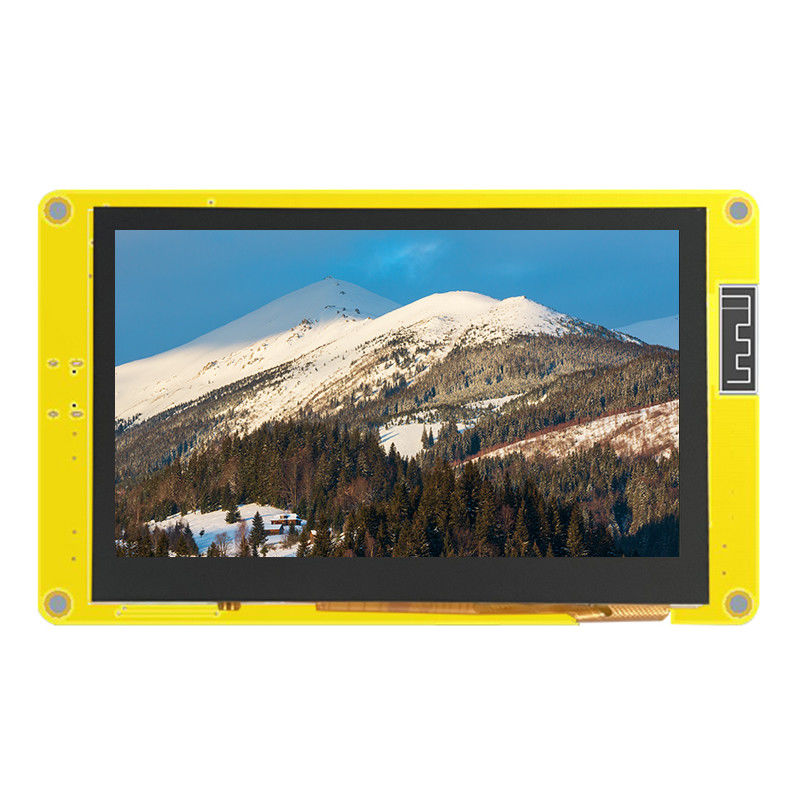

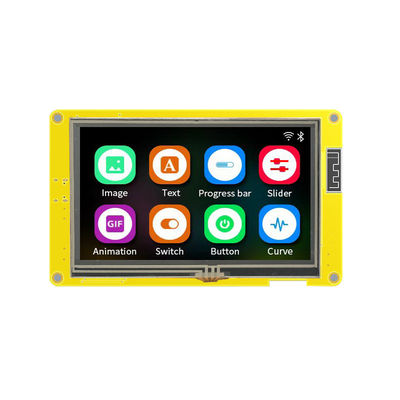

4.3 inch Resistive touch 4.3" 800*480 IPS RGB LCD TFT ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen
ESP32 development board-8M PSRAM 16M Flash, standard 4.3-inch TFT screen and Without touch or Resistor touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples
model:ESP32-8048S043R_I
Size:4.3 inch
Resolution:800*480
Touch mode:Resistive touch
Viewing angle:IPS
Interface mode:16bit RGB
Operating temperature:-20°-70°
Weight:120g
External dimensions:123.0*74.0mm
Display size:95.04*53.86mm
Operating voltage:5V
Backlight parameters:6 in parallel and 2 in series
Pin definition:type-c
ESP32-S3-WROOM-1 are general-purpose Wi-Fi + BLE MCU modules with rich peripheral interfaces, powerful neural network computing capabilities and signal processing capabilities, and are designed for artificial intelligence The two modules created in the AIoT market are suitable for a variety of application scenarios, such as wake word detection and voice command recognition, face detection and recognition, smart home, smart home appliances, smart control panels, smart speakers, etc. ESP32-S3-WROOM-1 uses PCB onboard antenna, ESP32-S3-WROOM-1U uses U.FL connector to connect external IPEX antenna. The two modules are equipped with ESP32-S3 series chips, 4/8/16 MB flash and 0/2/8 PSRAM are optional.
Introduction
The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.
ESP32-S3-wroom-1 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX7 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.
In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.
Product description

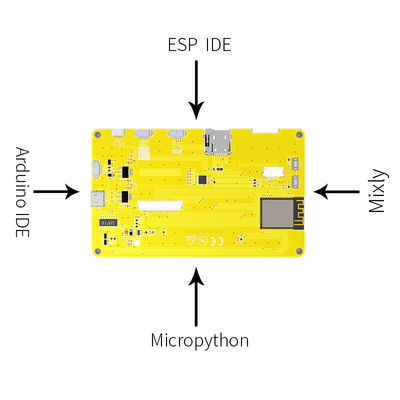

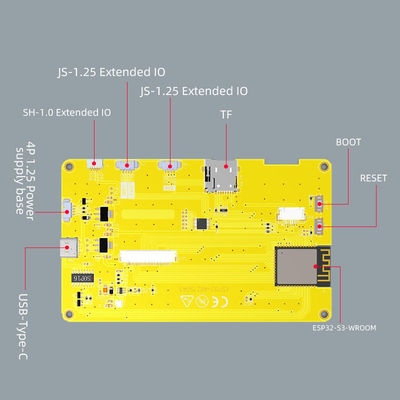

This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.
Features
● 4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors·

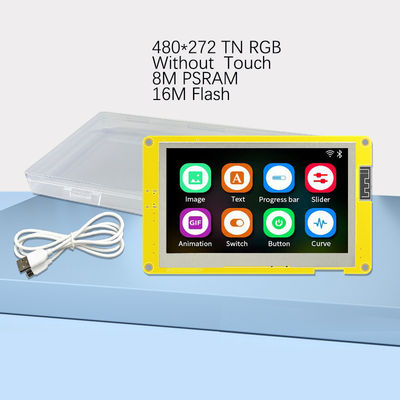

● 480X272 resolution
● The sample program has been programmed in the factory and can be plugged in
● With TF card slot for easy expansion storage
● Provide arduino library functions and sample programs to facilitate rapid secondary development
● Support one-click download program·
● Military-grade process standards, long-term stable work·
