1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth

1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth

1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth

Model Number: ESP32-1732S019N
MOQ: 50PCS
Price: ￥65/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Product Description
Detail Information
Place of Origin:
china
Size:
1.9inch
Resolution:
170*320
Touch:
Without Touch
LCD Panel:
IPS
Name:
ESP32-1732S019N
External Dimension:
65X32mm
Highlight:

1.9 Inch ESP32 Display Module

,

ESP32 Display Module 170x320

,

170x320 IPS Lcd Display Module

Product Description

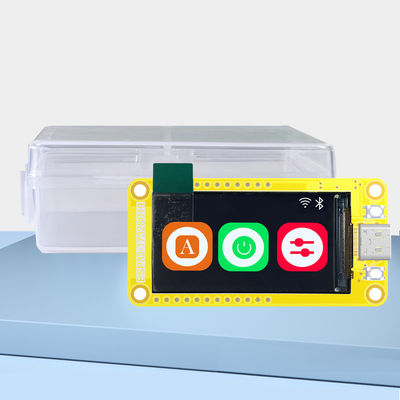

1.9 inch Without touch 170*320 IPS ESP32-S3 Arduino LVGL WIFI&Bluetooth 1.9 " Smart Display Screen LCD TFT Module

Features

New high quality



1. EPS32-1732S019 display supports USB-TypeC power supply.

2. It is equipped with the latest ESP32-S3 and Bluetooth compatible 5.0 module.

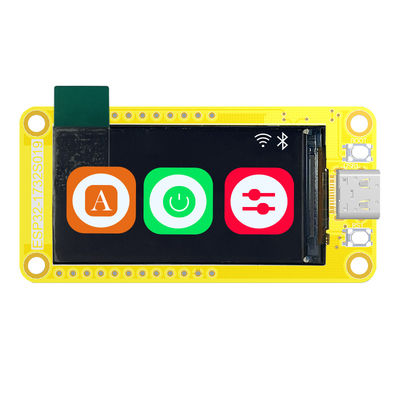

3. The screen is also a 1.9 inch display screen. This screen is an IPS screen. The display effect is very good.

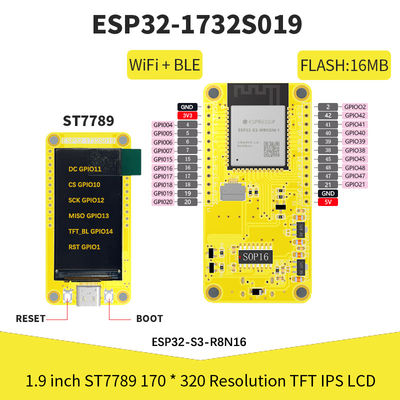

4. 4-wire SPI interface, the highest serial port frequency can run 80MHZ, working power 5.0V, resolution: 170 (H) RGBx320 V.


Specifications:

MCU: ESP32-S3R8 dual-core LX7 Microprocessor

Wireless connection: Wi-fi 802.11 BLE 5+BT mesh

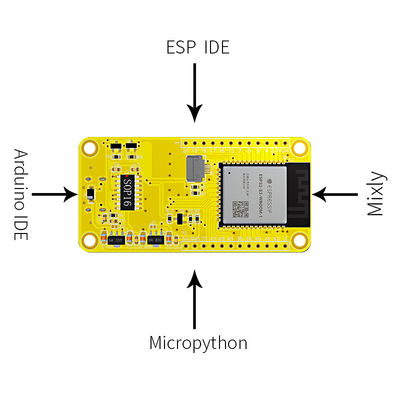

Programming platform: Arduino-ide

Flash memory: 16MB PSRAM: 8MB

Onboard function: start+reset

LCD: 1.9 inch ST7789V IPSTFT LCD

Driver chip: ST7789

Resolution: 170H RGBx320V

Size: about 65x32mm



Package includes:

1 PCS x Display S3 LCD development board


1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 0
1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 1
1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 2
1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 3

1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 4
1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 5

1.9 Inch ESP32 Display Module 170x320 IPS Lcd Display Module LVGL WIFI Bluetooth 6
