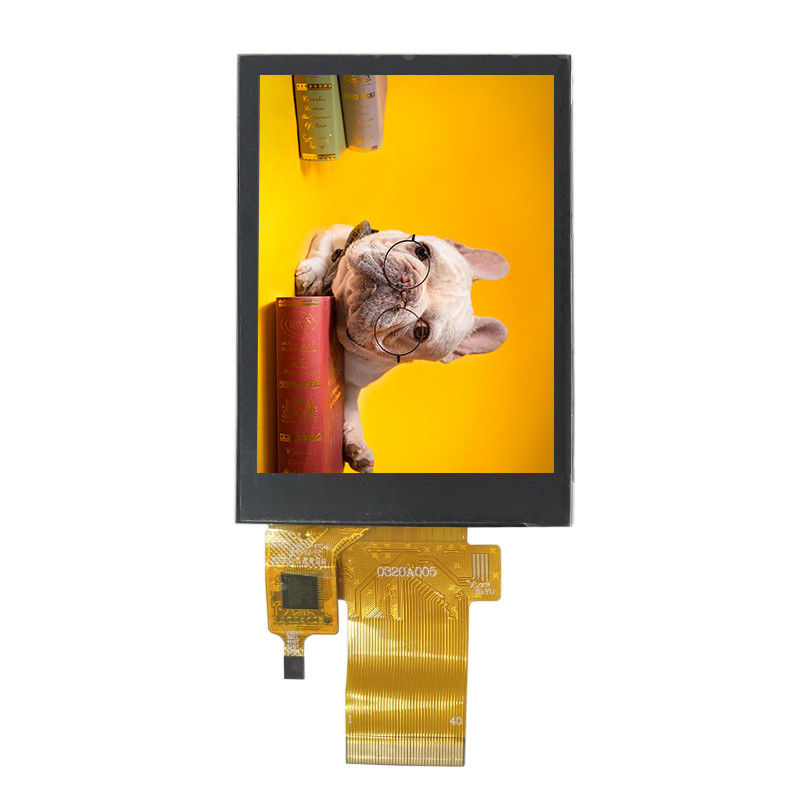

3.2 Inch TFT Display Module Capacitive 240x320 Touchscreen Display Module 8BIT
| Place of Origin | China |
|---|---|
| Model Number | JC2432C032C |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.2inch | Model | JC2432C032C |
|---|---|---|---|
| Resolution | 240*320 | Touch | Capacitive Touch |
| Driver IC | ST7789 | Operating Voltage | 3.3V |
| Highlight | 3.2 inch TFT Display Module Capacitive,240x320 Touchscreen Display Module,Capacitive Touchscreen Display Module 8BIT |
||
Product Description
3.2 inch Capacitive touch 240*320 TFT LCD display screen 40P Socket MCU I8080 816BIT SPI 3/4 wire Wide viewing angle
We have developed thousands of LCD display products for automotive products, consumer electronics, smart wearable device, POS, PDA, medical equipment, IOT products, smart home application, white goods, industrial and integration equipment, communication device, fiscal products, meter and measuring device, etc.
You can choose from our extensive range, including TFT LCD display, Touch Screen, customized LCD panel, COB and COG display.
Product description
| 1-1 | LCD Type | 3.2 inch Color TFT LCD Module Display(KWH032ST05-F02) |
| 1-2 | Dot Arrangement | 240x(R.G.B)x320 |
| 1-3 | Module Size | 55.94x77.60x3.6mm |
| 1-4 | Active Area | 48.6x64.8mm |
| 1-5 | Interface | MCU,RGB |
| 1-6 | Driver IC | ST7789 |
| 1-7 | Backlight | 5 White LED In Parallel |
| 1-8 | FPC Type | Soldering Type |
| 1-9 | Viewing Angle | 6 O'Clock |
| 1-10 | Touch Panel | With resistive touch panel |
| Items | Descriptions |
| Models | JC2432C032R |
| Interface Type | RGB |
| Pin No | 20pins |
| Application | Industrial Equipment |
| Resolution | 240(RGB)*320 |
| Backlight | LED backlight/white |
| Touch panel | Capacitive touch |
| Panel Size | 3.2 inch tft lcd display |
| Viewing direction | All |
| Drive IC | ST7789 |
| Certification | ISO:9001 ; ISO/TS16949; ISO13485 |
| Compliant | ROHS CE |
