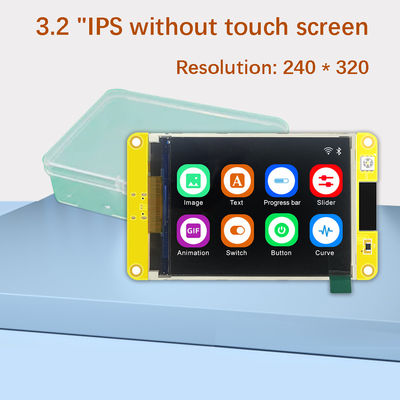

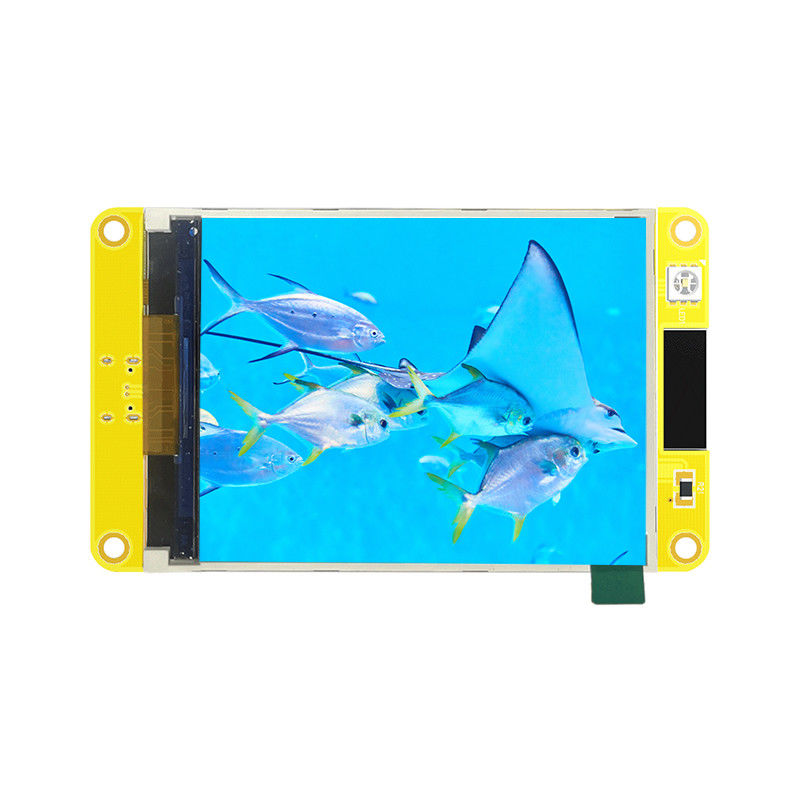

4M Flash 3.2 Lcd Module 240x320 ESP32 LVGL Tft Lcd Module Display
| Place of Origin | china |
|---|---|
| Model Number | ESP32-2432S032N |
| Minimum Order Quantity | 30PCS |
| Price | ￥75/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.2inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Without Touch | Name | ESP32-2432S032N |
| Flash | 4M | External Dimension | 93.7*55.0mm |
| Highlight | 4M Flash 3.2 Lcd Module,3.2 Lcd Module 240x320,ESP32 LVGL Tft Lcd Module Display |
||
Product Description

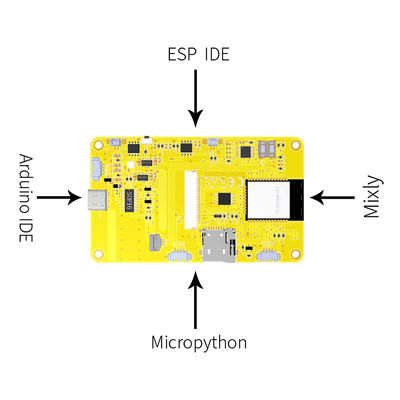

ESP32 development board, standard 3.2-inch TFT screen and Without touch, support one-key automatic download, provide LVGL demo and arduino examples

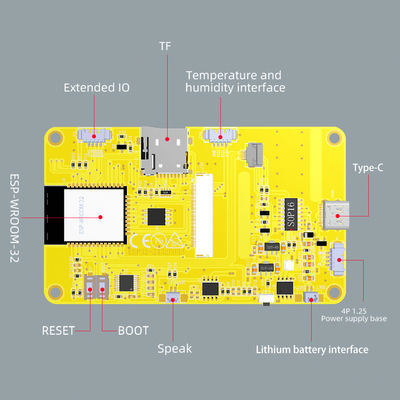

The core module used in ESP32-2432S032N is ESP32-WROOM-32.
ESP32-WROOM-32 is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of
applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding,
music streaming and MP3 decoding.
At the core of this module is the ESP32-D0WDQ6 chip*. The chip embedded is designed to be scalable and
adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable
from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to
save power while performing tasks that do not require much computing power, such as monitoring of
peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD
card interface, Ethernet, high-speed SPI, UART, I²S and I²C.
applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding,
music streaming and MP3 decoding.
At the core of this module is the ESP32-D0WDQ6 chip*. The chip embedded is designed to be scalable and
adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable
from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to
save power while performing tasks that do not require much computing power, such as monitoring of
peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD
card interface, Ethernet, high-speed SPI, UART, I²S and I²C.
The integration of Bluetooth ® , Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted,
and that the module is all-around: using Wi-Fi allows a large physical range and direct connection to the Internet
through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast
low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA, making it suitable for
battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps,
and 20 dBm output power at the antenna to ensure the widest physical range. As such the module does offer
industry-leading specifications and the best performance for electronic integration, range, power consumption,
and connectivity.
and that the module is all-around: using Wi-Fi allows a large physical range and direct connection to the Internet
through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast
low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA, making it suitable for
battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps,
and 20 dBm output power at the antenna to ensure the widest physical range. As such the module does offer
industry-leading specifications and the best performance for electronic integration, range, power consumption,
and connectivity.
