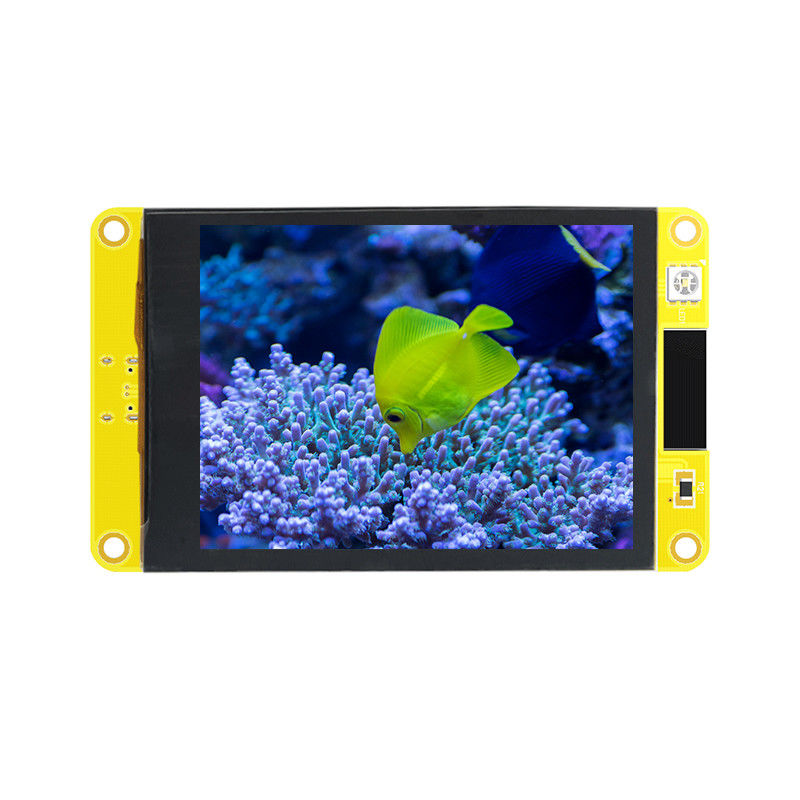

Capacitive 3.2 Inch Tft Display Module 240x320 ESP32 LVGL Spi Lcd Module
| Place of Origin | china |
|---|---|
| Model Number | ESP32-2432S032C |
| Minimum Order Quantity | 30PCS |
| Price | ￥75/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.2inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Capacitive Touch | Name | ESP32-2432S032C |
| External Dimension | 93.7*55.0mm | Viewing Angle | IPS Full View |
| Highlight | Capacitive 3.2 Inch Tft Display Module,3.2 Inch Tft Display Module 240x320,240x320 ESP32 LVGL Spi Lcd Module |
||
Product Description
ESP32 development board, standard 3.2-inch TFT screen and Capacitive touch, support one-key automatic download, provide LVGL demo and arduino examples

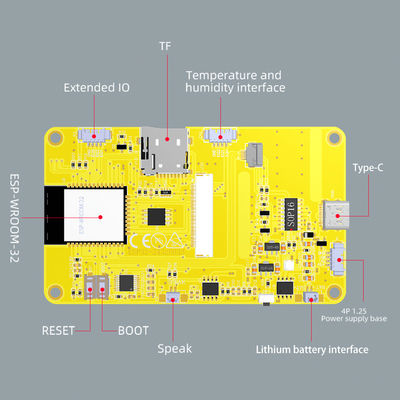

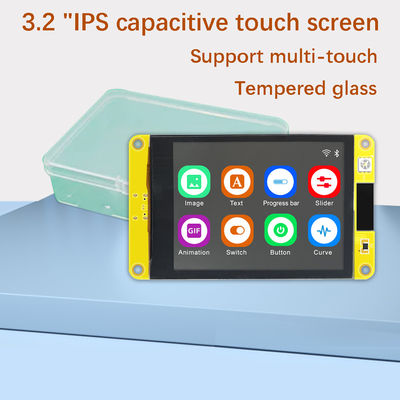

ESP32-2432S032C This display screen is equipped with ESP-WROOM-32 module, TF card display circuit, 3.2-inch IPS display screen, capacitive touch screen, audio circuit, TF card circuit,USB to TTL circuit (CH340), lithium battery charging and discharging circuit and reserved extended IO port for users. The capacitive touch screen uses the G+G process, and the touch chip uses the GT911 chip of Huiding, which has strong anti-interference ability, sensitive touch, and supports 5-point touch, and is widely used in the industrial control field. The lithium battery charging and discharging chip supports both charging and discharging, with overcharge and over-discharge protection. The maximum power of the audio circuit can be up to 3W. It is recommended that the user use an 8-ohm 3W speaker.

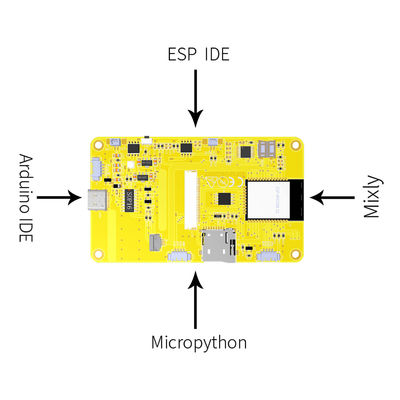

This display can be developed in a variety of environments, supporting arduino IDE, ESP IDE, and Mixly
, Micropython. LVGL and squareline software can be used to quickly develop human-computer interface. You can also cooperate with Binker or Blynk to quickly develop IOT projects. Both of these software are in a drag-and-drop mode and are easy to develop.
For this display screen, we provide a sample program for MP3 playback. You can control the light and display color of the LED on the module through your mobile phone. You can also play the music of SD card through voice, and support the display of lyrics.
