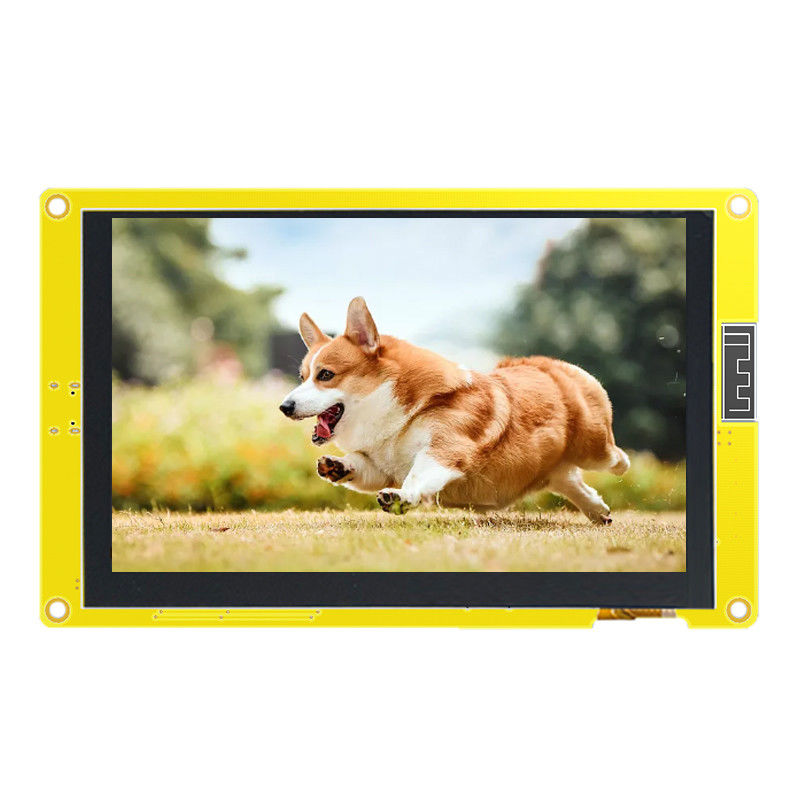

TFT 5 Inch WIFI Bluetooth ESP32 Display Module Capacitive Touch Screen
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S050C |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S050C | Size | 5.0inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Capacitive Touch |
| Display Color | RGB 65K Color | Type | TFT |
| Driver IC | ST7262 | Effective Display Area | 108.00* 64.80(mm) |
| Module Size | 137.0*84.0(mm) | Operating Voltage | 5V |
| Highlight | Bluetooth ESP32 Display Module,Arduino LVGL ESP32 Display Module,Capacitive Touch Smart Display Screen |
||
Product Description
TFT 5 Inch WIFI Bluetooth ESP32 Display Module Capacitive Touch Screen
5.0 inch Capacitive Touch 5.0" 800*480 ESP32 Arduino LVGL WIFI&Bluetooth Smart Display Screen 5inch LCD TFT Module
The ESP32 development board with 8M PSRAM and 16M Flash, standard 5.0-inch IPS TFT screen, supports one-key automatic download, provides LVGL demo, and Arduino examples.
The ESP32 development board is a powerful and flexible platform that combines a microcontroller unit (MCU) with built-in Wi-Fi and Bluetooth capabilities. It is widely used in IoT and embedded applications due to its low power consumption, high performance, and versatility.
| Specifications | |
| Part No. | ESP32-8048S050C |
| Size | 5.0inch |
| Display color | RGB 65K color |
| Touch | capacitive touch |
| Resolution(dots) | WVGA, 800*RGB*480 |
| Outline Dimension(mm) | 137.0*84.0(mm) |
| Display Area(mm) | 108.00*64.80(mm) |
| Driver IC | ST7262 |
| Type | TFT |
| Brightness | 300 nits |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) |
Parameters
1. CPU: The board has a low-power dual-core 32-bit CPU, which can be used as an application processor.
2. Main frequency: The board's main frequency is up to 240MHz, providing a computing power of up to 600 DMIPS.
3. SRAM: The board has built-in 520 KB SRAM, providing ample memory for applications.
4. Interfaces: The board supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces, making it flexible and versatile.
5. Camera support: The board supports OV2640 and OV7670 cameras, with built-in flash. It also supports picture Wi-Fi upload for easy sharing.
6. Storage support: The board supports TF card, providing additional storage space for applications.
7. Sleep modes: The board supports multiple sleep modes, allowing for efficient power management.
8. Embedded software: The board comes with embedded Lwip and FreeRTOS software, providing a robust and reliable development environment.
9. Network support: The board supports STA/AP/STA+AP working mode, providing flexibility in network connectivity. It also supports Smart Config/AirKiss one-click network configuration for easy setup.
10. Secondary development support: The board supports secondary development, allowing developers to create custom applications and extend the functionality of the board.
Overall, the ESP32 development board is a powerful and flexible platform that provides a wide range of features and capabilities for IoT and embedded applications. Its low-power dual-core CPU, high main frequency, ample SRAM, versatile interfaces, camera and storage support, sleep modes, embedded software, network support, and secondary development support make it a popular choice for developers who need a reliable and flexible platform for their projects
Industry applications
1. Industrial Control: such as factory automation, robot control, logistics control.
2. Smart Home: such as Smart Home Control Panel, Environmental monitoring, etc.
3. Health Care: such as health monitoring, medical equipment, telemedicine, etc.
4. Consumer Electronics: such as digital cameras, electronic toys, portable media player, etc.
5. Automotive Electronics: such as Intelligent Vehicle System, vehicle entertainment, vehicle navigation.
6. Education: such as educational robots, electronic experiments.
ESP32-8048S050C module supports LVGL, a popular graphics library that provides a range of graphics functions for creating user interfaces, animations, and other visual effects. This makes it easy for developers to create modern and attractive user interfaces for their applications.
Arduino examples: The module comes with Arduino examples, which can help developers to get started quickly and easily with the platform.
