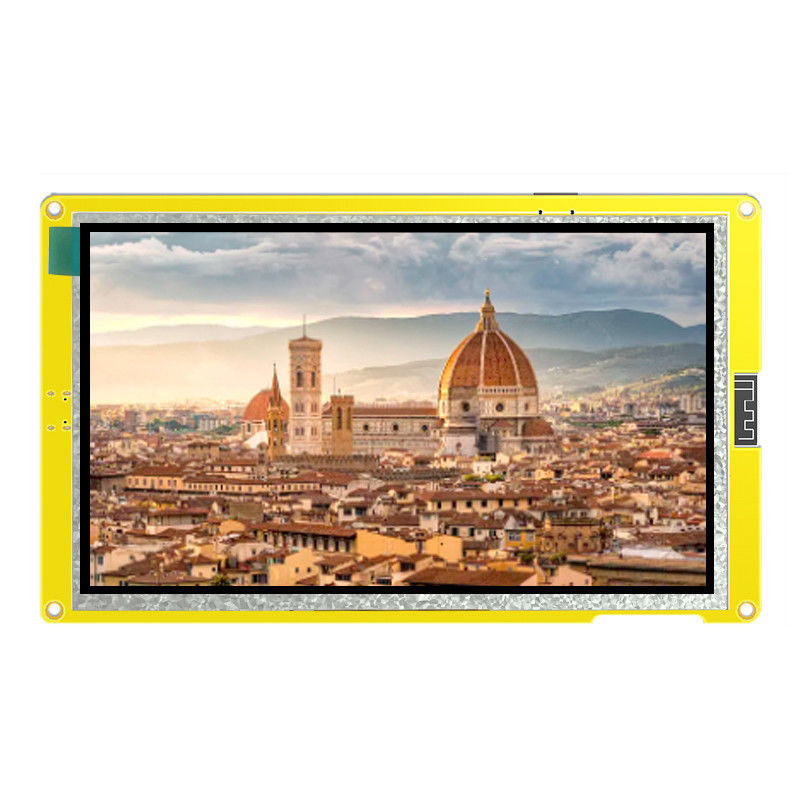

7.0 Inch Arduino 16M Flash IPS TFT LCD Display Module Wihthout Touch
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070N |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S070N | Size | 7inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Without Touch |
| PCB Color | Yellow | Display Color | RGB 65K Color |
| Driver IC | EK9716 | ||
| Highlight | IPS TFT LCD Display Module,Arduino Tft Lcd Display Module,16M Flash Arduino Display Module |
||
Product Description
7.0 Inch Arduino 16M Flash IPS TFT LCD Display Module Wihthout Touch
The 7.0 inch RGB LCD display module without touch is a high-quality display module that includes an ESP32-S3 microcontroller, 8M PSRAM, 16M Flash, and Wi-Fi capabilities. It features an 800x480 TN Smart Display Screen TFT module, which provides a clear and vivid display.
| Specifications | |
| Part No. | ESP32-8048S070N |
| Size | 7inch |
| Display color | RGB 65K color |
| Driver IC | EK9716 |
| Resolution(dots) | WVGA, 800*RGB*480 |
| LCD Panel | TN |
| PCB Color | yellow |
| Brightness | 300 nits |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) |
| Pixel Pitch | 0.135(W)x0.135(L) |
| Pixel arrangement | RGB Vertical stripe |
Features
Microcontroller: ESP32(dual-core 32-bit processor, clock speed up to 240MHz-RRB-
display size: 7-inch
resolution:800X480x480
display color: 16-RGB RGB, supp65K 65K color
display angle: wide viewing angle, non-distortion or color-changing
brightness: high brightness, can clearly show the response time under strong light conditions: Fast Response, display fast moving image and animation
storage: 8MB PSRAM and 16MB Flash
working voltage: 4.75-5.25V
working temperature: -20 ℃~ 70 ℃
size: 180mm x 120mm x 50mm (including the shell)
weight: about 200g
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Application :
1. Internet of things;
2. Intelligent home;
3. Industrial control;
4. Health care;
5. Consumer electronics;
6. Automotive electronics and other applications
ESP32 7inchDisplay module
Development support and sample code ESP32 7inchDisplay module provides development support and sample code to enable developers to quickly start using the platform and customize it for specific applications.
Industrial Design: This module adopts industrial design, with high reliability and stability, can work in a variety of harsh environments
Esp327-inch LCD module is open source software and hardware parts, you can easily carry out secondary development and customization
