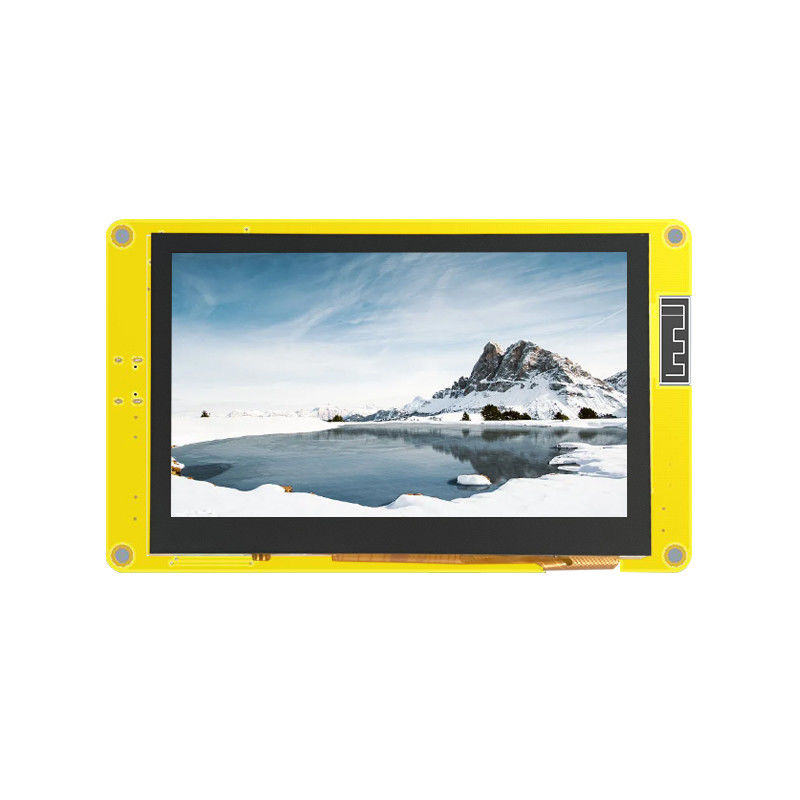

HMI Arduino LVGL 4.3 Inch ESP32 Display Module RGB 480*270 Resolution
| Place of Origin | china |
|---|---|
| Model Number | ESP32-4827S043C |
| Minimum Order Quantity | 30PCS |
| Price | ￥142/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-4827S043C | Size | 4.3inch |
|---|---|---|---|
| Resolution | 480*272 | Touch | Capacitive Touch |
| LCD Panel | TN | Operating Voltage | 5V |
| Highlight | HMI ESP32 Display Module,RGB ESP32 Display Module,ESP32 Tft Lcd Display Arduino |
||
Product Description
HMI Arduino LVGL 4.3 Inch ESP32 Display Module RGB 480*270 Resolution
4.3 inch Capacitive Touch 480*270 TN ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module
1. Display: 4.3 inch TFT screen with a resolution of 480x270 pixels.
2. Touchscreen: Capacitive touch for intuitive and responsive user interaction.
3. Microcontroller: ESP32-S3, a powerful and energy-efficient processor with Wi-Fi and Bluetooth connectivity.
4. Memory: 8MB PSRAM and 8MB Flash, providing sufficient storage space for data and applications.
5. Graphics library: includes LVGL for creating user interfaces, animations, and other visual effects.
6. Programming language: compatible with Arduino and MicroPython, making it easy to develop and customize applications.
7. Connectivity: built-in Wi-Fi and Bluetooth modules for seamless communication with other devices and networks.
8. Power supply: supports 5V DC power input.
|
Specifications |
|
|
Name |
Describe |
|
Display color |
RGB 65K color |
|
SKU |
ESP32-4827S043C |
|
Size |
4.3 inch |
|
Touch |
Capacitive touch |
|
Type |
TFT |
|
Driver chip |
ILI9485 |
|
Resolution |
480*272(Pixel) |
|
Effective display area |
95.04* 53.86(mm) |
|
Module size |
105.5*74(mm) |
|
View |
>60° |
|
Operating temperature(°C) |
-20℃~70℃ |
|
storage temperature |
-30℃~80℃ |
|
Operating Voltage |
5V |
|
Power consumption |
About 260mA |
|
Product weight |
About 130g |
ESP32-4827S043C
1. CPU: Embedded Xtensa dual-core 32-bit LX7 microprocessor, clocked at up to 240 MHz.
2. ROM: 384KB of read-only memory.
3. SRAM: 512KB of static random-access memory, with an additional 16KB of SRAM in RTC (real-time clock).
4. PSRAM: Up to 8MB of external pseudo-static RAM, which can be used as additional memory for data and instructions.
In terms of wireless connectivity, the ESP32-S3 supports Wi-Fi and Bluetooth with the following specifications:
1. Wi-Fi: 802.11 b/g/n with a bit rate of up to 150 Mbps. The operating channel frequency range is 2412-2484 MHz, and it supports A-MPDU and A-MSDU aggregation as well as 0.4 µs guard interval.
2. Bluetooth: Supports Bluetooth LE (Low Energy) with Bluetooth 5 and Bluetooth mesh. The supported speeds are 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps, and it also includes advertising extensions, multiple advertisement sets, and channel selection algorithm #2. The ESP32-S3 also includes an internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna.
Application Industry
1. Smart home:Such as lighting, temperature, security, etc.
2. Industrial Automation:Such as robots, sensors, automation equipment.
3. Medical equipment: such as medical monitors, hand-held diagnostic equipment.
4.Automotive Electronics: Automotive Entertainment Systems, vehicle navigation, vehicle diagnosis and other applications.
About the product
The ESP32 WiFi and Bluetooth chip is a highly capable and versatile chip from Espressif Systems. It features a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology.
One of the latest versions of this chip, the ESP32-S3-wroom-1, offers significant performance improvements over previous models. It is equipped with a high-performance dual-core Tensilica LX7 MCU, with one core dedicated to handling high-speed connections and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS, making it a powerful option for IoT and embedded applications.
In addition to its high-performance capabilities, the ESP32-S3-wroom-1 also supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources, providing developers with a wide range of options for connectivity and customization. Overall, the ESP32-S3-wroom-1 is a highly capable and versatile chip that is well-suited for a variety of IoT and embedded applications.
