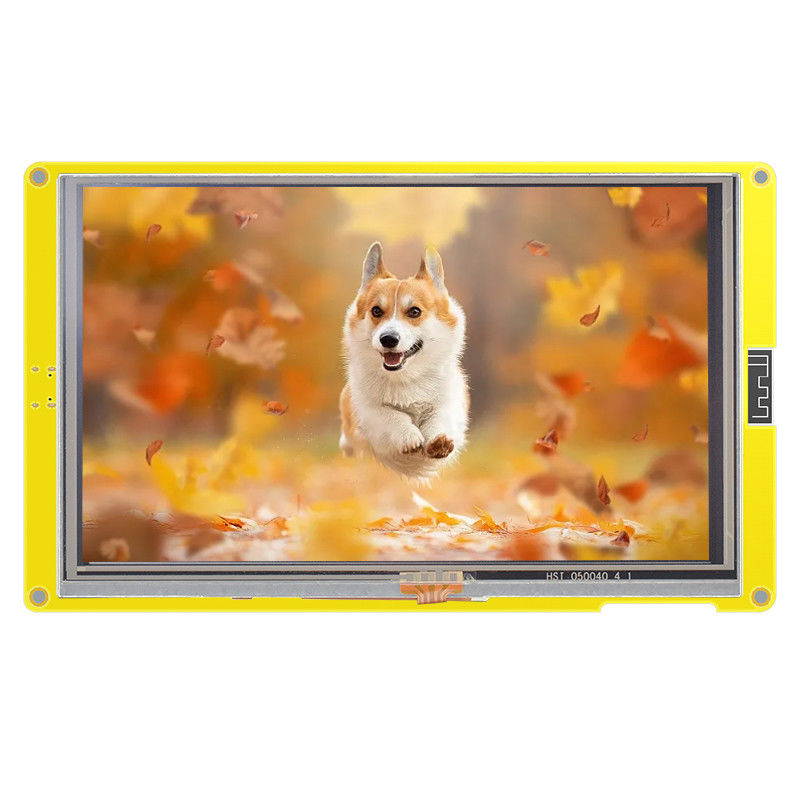

ESP32 TFT 5 Inch Resistive Touch Screen With 800 * 480 Resolution
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S050C |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S050R | Size | 5.0inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Resistive Touch |
| Driver IC | ST7262 | Effective Display Area | 108.00* 64.80(mm) |
| Operating Voltage | 5V | ||
| Highlight | TFT Color Resistive Touch Screen,RGB Resistive Touch Screen,ESP32 TFT Color Display |
||
Product Description
ESP32 TFT 5 Inch Resistive Touch Screen With 800 * 480 Resolution
ESP32 TFT 5-inch resistive touch screen with 800 * 480 resolution supporting Bluetooth and WiFi color display
The 5.0 inch ESP32 display module is a powerful development board designed specifically for IoT and embedded applications that require user-friendly interfaces and wireless connectivity options. The board has a 5.0 inch TFT display screen and resistive touch screen, with a resolution of 800x480 pixels.
|
Specifications |
|
|
Part No. |
ESP32-8048S050C |
|
Size |
5.0inch |
|
Display color |
RGB 65K color |
|
Touch |
capacitive touch |
|
Resolution(dots) |
WVGA, 800*RGB*480 |
|
Outline Dimension(mm) |
137.0*84.0(mm) |
|
Display Area(mm) |
108.00*64.80(mm) |
|
Driver IC |
ST7262 |
|
Type |
TFT |
|
Brightness |
300 nits |
|
Operating temperature(°C) |
-20℃~70℃ |
|
Storage temperature(°C) |
-30℃~80℃ |
|
Number of Pixel(pixels) |
800RGB(H)xRGBx480(V) |
Parameters
1. has a low-power dual-core 32-bit CPU, which can be used as an application processor.
2. main frequency is up to 240MHz, providing a computing power of up to 600 DMIPS.
3. has built-in 520 KB SRAM, providing ample memory for applications.
4. supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces, making it flexible and versatile.
5. supports OV2640 and OV7670 cameras, with built-in flash. It also supports picture Wi-Fi upload for easy sharing.
6. supports TF card, providing additional storage space for applications.
7. supports multiple sleep modes, allowing for efficient power management.
8. comes with embedded Lwip and FreeRTOS software, providing a robust and reliable development environment.
9. supports STA/AP/STA+AP working mode, providing flexibility in network connectivity. It also supports Smart Config/AirKiss one-click network configuration for easy setup.
Industry applications
1. Industrial Control: such as factory automation, robot control, logistics control.
2. Smart Home: such as Smart Home Control Panel, Environmental monitoring, etc.
3. Health Care: such as health monitoring, medical equipment, telemedicine, etc.
4. Consumer Electronics: such as digital cameras, electronic toys, portable media player, etc.
5. Automotive Electronics: such as Intelligent Vehicle System, vehicle entertainment, vehicle navigation.
6. Education: such as educational robots, electronic experiments.
ESP32-8048S050C module supports LVGL, a popular graphics library that provides a range of graphics functions for creating user interfaces, animations, and other visual effects. This makes it easy for developers to create modern and attractive user interfaces for their applications.
Arduino examples: The module comes with Arduino examples, which can help developers to get started quickly and easily with the platform.
