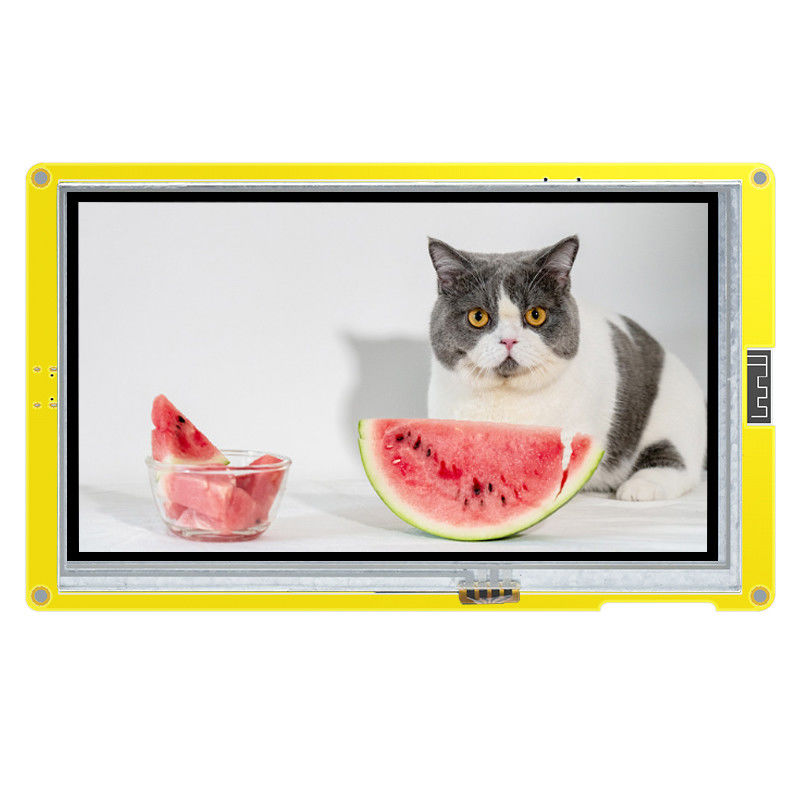

Resistive Touch ESP32 Display Module 7.0 Inch TFT LCD Support WiFi Bluetooth
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070R |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S070R | Size | 7inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Resistive Touch |
| Display Size | 154.08x85.92 | Dimension | 164.9x100x5.7 |
| Highlight | Resistive Touch ESP32 Display Module,WiFi Bluetooth ESP32 Display Module,ESP32 7.0 Inch TFT LCD |
||
Product Description
The product is a high-quality display module that is well-suited for a variety of applications, including IoT devices, smart homes, and other applications that require a fast and responsive display. The ESP32-S3 microcontroller and Wi-Fi capabilities make it a powerful tool for creating connected devices, while the 8M PSRAM and 16M Flash provide ample storage for data and program code.
| Specifications | |
| Part No. | ESP32-8048S070R |
| Size | 7inch |
| Display color | RGB 65K color |
| Driver IC | EK9716 |
| Resolution(dots) | WVGA, 800*RGB*480 |
| LCD Panel | TN |
| PCB Color | yellow |
| Pixel arrangement | RGB Vertical stripe |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Pixel Pitch | 0.135(W)x0.135(L) |
| Brightness | 300 nits |
Features
Microcontroller: ESP32(dual-core 32-bit processor, clock speed up to 240MHz-RRB-
display size: 7-inch
resolution:800X480x480
display color: 16-RGB RGB, supp65K 65K color
display angle: wide viewing angle, non-distortion or color-changing
brightness: high brightness, can clearly show the response time under strong light conditions: Fast Response, display fast moving image and animation
storage: 8MB PSRAM and 16MB Flash
working voltage: 4.75-5.25V
working temperature: -20 ℃~ 70 ℃
size: 180mm x 120mm x 50mm (including the shell)
weight: about 200g
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Application :
1. Internet of things;
2. Intelligent home;
3. Industrial control;
4. Health care;
5. Consumer electronics;
6. Automotive electronics and other applications
ESP32 7inchDisplay module
Development support and sample code ESP32 7inchDisplay module provides development support and sample code to enable developers to quickly start using the platform and customize it for specific applications.
Industrial Design: This module adopts industrial design, with high reliability and stability, can work in a variety of harsh environments
Esp327-inch LCD module is open source software and hardware parts, you can easily carry out secondary development and customization
