LVGL TFT LCD ESP32 Display Module 3.2 Inch Touchless 240x320
| Place of Origin | china |
|---|---|
| Model Number | ESP32-2432S032N |
| Minimum Order Quantity | 30PCS |
| Price | ￥75/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.2inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Without Touch | Name | ESP32-2432S032N |
| Operating Voltage | 5V | External Dimension | 93.7*55.0mm |
| View | >60° | ||
| Highlight | TFT LCD ESP32 Display Module,LVGL ESP32 Display Module,Touchless TFT LCD Module Display |
||
Product Description

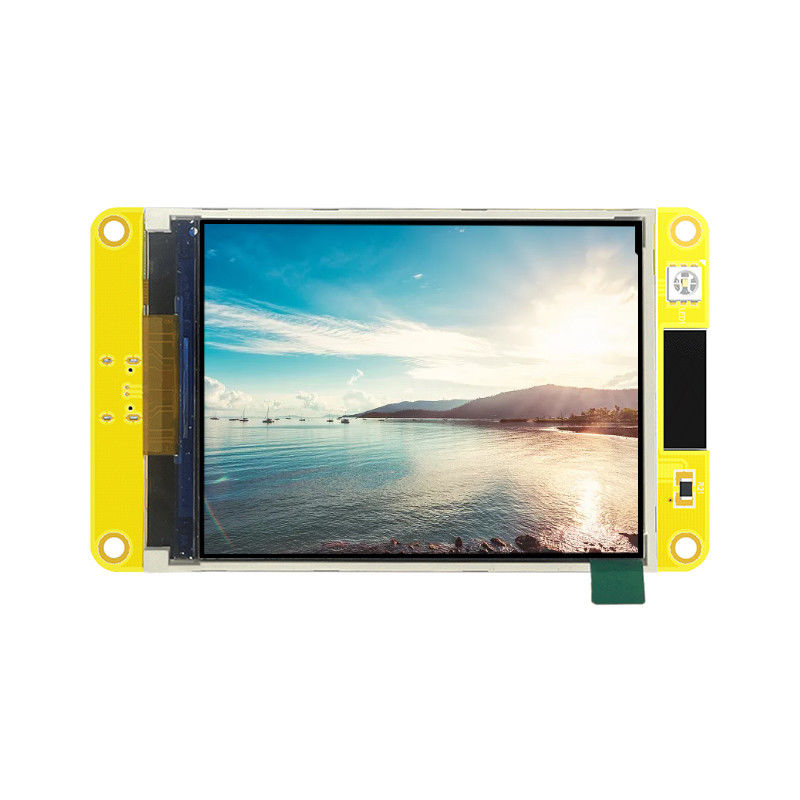

LVGL TFT LCD ESP32 Display Module 3.2 Inch Touchless 240x320
The 3.2 inch non touch LCD module with a resolution of 240x320, ESP32, and LVGL TFT LCD display is an excellent choice for developing IoT projects that require a user interface. This module supports Bluetooth and WiFi, making it easy to connect to various devices.
|
Size |
3.2inch |
|
Resolution |
240*320 |
|
Touch |
Without touch |
|
Name |
ESP32-2432S032N |
|
Flash |
4M |
|
External dimension |
93.7*55.0mm |
|
View |
>60° |
|
Operating temperature |
-20℃~70℃ |
|
storage temperature |
-30℃~80℃ |
|
Operating Voltage |
5V |
features:
1 . High resolution: This module has a resolution of 240x320 and can display clear images and text.
2 . No touch function: This module has no touch function, allowing users to control the module without actually touching the screen, which is very useful in certain application scenarios such as industrial environments or wearing gloves.
3 . ESP32 chip support: This module uses an ESP32 chip and supports Bluetooth and WiFi connections, making it easier to connect to other devices.
4 . LVGL TFT LCD Display: This module uses an LVGL TFT LCD display, which is a powerful and flexible graphics library that can help users create customized user interfaces.
5 . Easy to use: This module is easy to use and can help users quickly develop their own IoT projects without requiring a lot of programming experience
The core module used in ESP32-2432S032N is ESP32-WROOM-32.
ESP32-WROOM-32 is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of
applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding,
music streaming and MP3 decoding.
At the core of this module is the ESP32-D0WDQ6 chip*. The chip embedded is designed to be scalable and
adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable
from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to
save power while performing tasks that do not require much computing power, such as monitoring of
peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD
card interface, Ethernet, high-speed SPI, UART, I²S and I²C.
The integration of Bluetooth ® , Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted,
and that the module is all-around: using Wi-Fi allows a large physical range and direct connection to the Internet
through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast
low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA, making it suitable for
battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps,
and 20 dBm output power at the antenna to ensure the widest physical range. As such the module does offer
industry-leading specifications and the best performance for electronic integration, range, power consumption,
and connectivity.
