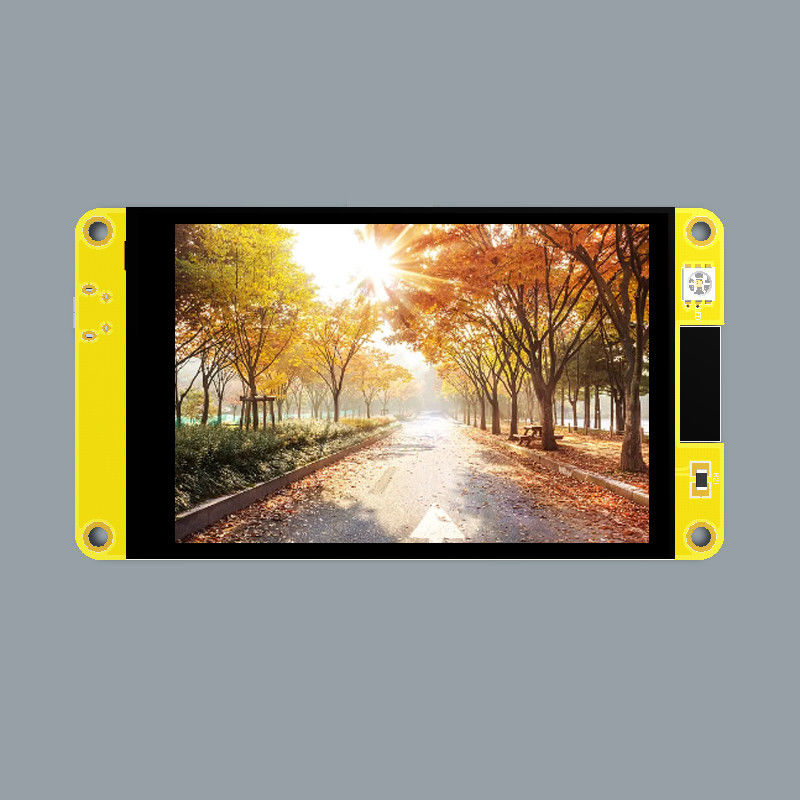

Capacitive Touch Screen Module Development Board TFT LCD Display Arduino
| Place of Origin | china |
|---|---|
| Model Number | ESP32-4832S035C |
| Minimum Order Quantity | 30PCS |
| Price | ￥115/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-4832S035C | Size | 3.5inch |
|---|---|---|---|
| Resolution | 320*480 | Touch | Capacitive Touch |
| Operating Temperature | -20℃~70℃ | Storage Temperature | -30℃~80℃ |
| Operating Voltage | 5V | ||
| Highlight | Capacitive Touch Screen Module,LVGL Touch Screen Module,3.5inch TFT LCD Display Arduino |
||
Product Description
3.5 inch Resistance touch 320*480 ESP32 LVGL WIFI&Bluetooth Development Board 3.5" Smart Display Screen LCD TFT Module
ESP32 development board, standard 3.5-inch TFT screen and resistor TP, support one-key automatic download, provide LVGL demo and arduino examples
Our hardware display can cooperate with SquareLine Studio to quickly develop the interface. SquareLine Studio is a visual drag-and-drop UI editor that can quickly and easily create beautiful graphical user interfaces for embedded and desktop applications. It is aimed at enthusiasts, professionals, programmers and designers. In addition, SquareLine Studio is available at an amazing price.
| Name | Describe |
| Display color | RGB 65K color |
| SKU | Capacitive touch:ESP32-3248S035C |
| Size | 3.5 inch |
| Type | TFT |
| Driver chip | ST7796 |
| Resolution | 320*480(Pixel) |
| Effective display area | 73.44*48.96(mm) |
| Module size | 101.5*54.9(mm) |
| View | >60° |
| Operating temperature | -20℃~70℃ |
| storage temperature | -30℃~80℃ |
| Operating Voltage | 5V |
| Power consumption | About 160mA |
| Product weight | About 50g |
Features
●3.5-inch color screen, support 16 BIT RGB 65K color display, display rich
colors
●320X480 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work
FAQ
Q: delivery time?
A: Within three days after receiving the order, please contact customer service for any special requirements.
Q: Regarding receipt and acceptance?
A: Due to the fragile nature of the LCD display screen, please be sure to power on for inspection. Otherwise, any issues that arise after receiving the product can only be handled according to after-sales standards.
Q : About Product Technical Support?
A : The website has product information. If you have any questions about using it, you can contact customer service and provide technical support
