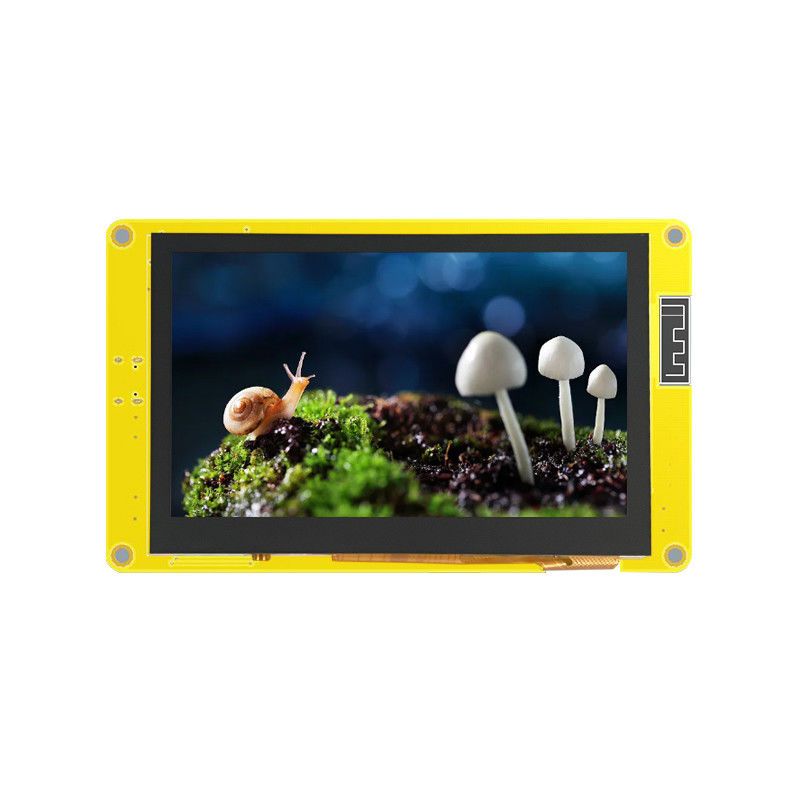

Capacitive Touch Screen ESP32 Display Module RGB 480 * 270 Resolution
| Place of Origin | china |
|---|---|
| Model Number | ESP32-4827S043C |
| Minimum Order Quantity | 30PCS |
| Price | ￥142/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-4827S043C | Size | 4.3inch |
|---|---|---|---|
| Resolution | 480*272 | Touch | Capacitive Touch |
| Type | TFT | Driver Chip | ILI9485 |
| Power Consumption | About 260mA | ||
| Highlight | 4.3inch ESP32 Display Module,TFT Capacitive Touch Screen,ILI9485 HMI LCD Display |
||
Product Description
Capacitive Touch Screen ESP32 Display Module RGB 480 * 270 Resolution
4.3 inch ESP32 capacitive touch screen RGB 480 * 270 resolution ratio HMI Arduino LVGL LCD display
1. 4.3 inch TFT screen with a resolution of 480x270 pixels.
2. Capacitive touch for intuitive and responsive user interaction.
3. ESP32-S3, a powerful and energy-efficient processor with Wi-Fi and Bluetooth connectivity.
4. 8MB PSRAM and 8MB Flash, providing sufficient storage space for data and applications.
5. includes LVGL for creating user interfaces, animations, and other visual effects.
6. compatible with Arduino and MicroPython, making it easy to develop and customize applications.
7. built-in Wi-Fi and Bluetooth modules for seamless communication with other devices and networks.
8. supports 5V DC power input.
|
Name |
Describe |
|
SKU |
Capacitivetouch:ESP32-4827S043C |
|
Size |
4.3 inch |
|
Type |
TFT |
|
Driver chip |
ILI9485 |
|
Resolution |
480*272(Pixel) |
|
Effective display area |
95.04* 53.86(mm) |
|
Operating temperature |
-20℃~70℃ |
|
storage temperature |
-30℃~80℃ |
|
Module size |
105.5*74(mm) |
|
Power consumption |
About 260mA |
|
Product weight |
About 130g |
|
Display color |
RGB 65K color |
|
Operating Voltage |
5V |
ESP32-4827S043C
1. CPU: Embedded Xtensa dual-core 32-bit LX7 microprocessor, clocked at up to 240 MHz.
2. ROM: 384KB of read-only memory.
3. SRAM: 512KB of static random-access memory, with an additional 16KB of SRAM in RTC (real-time clock).
4. PSRAM: Up to 8MB of external pseudo-static RAM, which can be used as additional memory for data and instructions.
In terms of wireless connectivity, the ESP32-S3 supports Wi-Fi and Bluetooth with the following specifications:
1. Wi-Fi: 802.11 b/g/n with a bit rate of up to 150 Mbps. The operating channel frequency range is 2412-2484 MHz, and it supports A-MPDU and A-MSDU aggregation as well as 0.4 µs guard interval.
2. Bluetooth: Supports Bluetooth LE (Low Energy) with Bluetooth 5 and Bluetooth mesh. The supported speeds are 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps, and it also includes advertising extensions, multiple advertisement sets, and channel selection algorithm #2. The ESP32-S3 also includes an internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna.
Application Industry
1. Smart home:Such as lighting, temperature, security, etc.
2. Industrial Automation:Such as robots, sensors, automation equipment.
3. Medical equipment: such as medical monitors, hand-held diagnostic equipment.
4.Automotive Electronics: Automotive Entertainment Systems, vehicle navigation, vehicle diagnosis and other applications.
About the product
The ESP32 WiFi and Bluetooth chip is a highly capable and versatile chip from Espressif Systems. It features a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology.
One of the latest versions of this chip, the ESP32-S3-wroom-1, offers significant performance improvements over previous models. It is equipped with a high-performance dual-core Tensilica LX7 MCU, with one core dedicated to handling high-speed connections and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS, making it a powerful option for IoT and embedded applications.
In addition to its high-performance capabilities, the ESP32-S3-wroom-1 also supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources, providing developers with a wide range of options for connectivity and customization. Overall, the ESP32-S3-wroom-1 is a highly capable and versatile chip that is well-suited for a variety of IoT and embedded applications.
FAQ
Q: Regarding receipt and acceptance?
A: Due to the fragile nature of the LCD display screen, please be sure to power on for inspection. Otherwise, any issues that arise after receiving the product can only be handled according to after-sales standards.
Q : About Product Technical Support?
A : The website has product information. If you have any questions about using it, you can contact customer service and provide technical support
