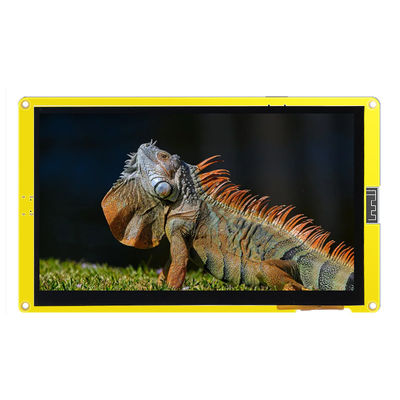

ESP32 7.0-inch TFT LCD display module with capacitive touch support for WiFi and Bluetooth
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070C |
| Minimum Order Quantity | 30PCS |
| Price | ￥228/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ESP32-8048S070C | Size | 7inch |
|---|---|---|---|
| Resolution | 800*480 | Touch | Capacitive Touch |
| View Direction | 12H | Weight(g) | 50(Typ.) |
| Brightness | 800 Nits | ||
| High Light | capacitive touch LCD display module,7.0inch LCD display module,Bluetooth LCD display module |
||
Product Description
ESP32 7.0-inch TFT LCD display module with capacitive touch support for WiFi and Bluetooth
An ESP32 7.0-inch TFT LCD display module with capacitive touch support for WiFi and Bluetooth is a powerful and versatile display solution for IoT and multimedia applications.
The ESP32 microcontroller provides WiFi and Bluetooth connectivity, making it ideal for IoT applications. The 7.0-inch TFT LCD display provides a large and clear display area, making it suitable for displaying text, graphics, and multimedia content. The capacitive touch technology provides accurate and responsive touch input.
With a resolution of up to 1024x600 pixels, the display can show detailed and high-quality images, making it suitable for applications such as home automation, industrial control, and multimedia systems. The module also includes a microSD card slot for additional storage.
| Name | ESP32-8048S070C |
| Size | 7inch |
| Resolution | 800*480 |
| Touch | capacitive touch |
| Brightness | 800 nits |
| Operating temperature | -20℃~70℃ |
| storage temperature | -30℃~80℃ |
| Operating Voltage | 5V |
| Type | TFT |
Main features:
1. WiFi and Bluetooth connection: This display module integrates an ESP32 microcontroller and has WiFi and Bluetooth connection functions, suitable for IoT applications.
2. Large size display screen: This display module features a 7.0-inch TFT LCD display screen, providing a large clear display area.
3. Capacitive touch technology: This display module is equipped with capacitive touch technology, providing accurate and sensitive touch input.
4. High resolution: The display module has a resolution of up to 1024x600 pixels and can display high-quality images and text.
5. Storage expansion: The display module also comes with a microSD card slot, which can be used for additional storage expansion.
6. Multiple applications: This display module is suitable for various application scenarios such as home automation, industrial control, and multimedia systems.
1. WiFi and Bluetooth connection: This display module integrates an ESP32 microcontroller and has WiFi and Bluetooth connection functions, suitable for IoT applications.
2. Large size display screen: This display module features a 7.0-inch TFT LCD display screen, providing a large clear display area.
3. Capacitive touch technology: This display module is equipped with capacitive touch technology, providing accurate and sensitive touch input.
4. High resolution: The display module has a resolution of up to 1024x600 pixels and can display high-quality images and text.
5. Storage expansion: The display module also comes with a microSD card slot, which can be used for additional storage expansion.
6. Multiple applications: This display module is suitable for various application scenarios such as home automation, industrial control, and multimedia systems.
FAQ
Can TFT LCD modules be used in outdoor environments?
Yes, TFT LCD modules can be used in outdoor environments, but they may require additional protection to prevent damage from sunlight, moisture, and temperature extremes.
What is the lifespan of TFT LCD modules?
The lifespan of TFT LCD modules depends on various factors, such as the quality of the components, the operating conditions, and the frequency of use. In general, TFT LCD modules can last for several years with proper care and maintenance.
What are the advantages of esp32 ?
ESP32 has advantages such as dual core processors, low power consumption, Wi Fi and Bluetooth capabilities, rich peripheral interfaces, abundant development resources, and ease of development. These advantages make ESP32 an excellent choice in fields such as smart homes, the Internet of Things, and smart wearables
What SD cards are supported by the SDIO/SPI interface of ESP32?
SDSC card: Standard capacity SD card with a capacity of 2GB or less.
SDHC card: High capacity SD card with a capacity between 2GB and 32GB.
SDXC card: Expansion capacity SD card, with a capacity between 32GB and 2TB.
