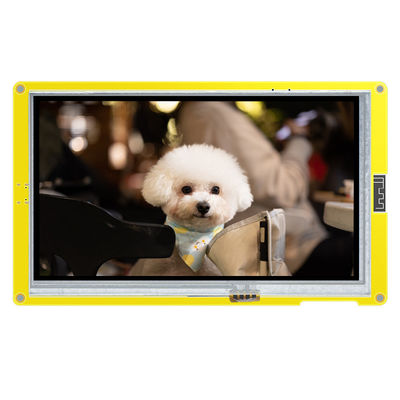

ESP32 7.0-inch TFT LCD supports WiFi Bluetooth LCD display module LVGL development board
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070R |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 7inch | Touch | Resistive Touch |
|---|---|---|---|
| Name | ESP32-8048S070R | Brightness | 800 Nits |
| Type | TFT | Operating Voltage | 5V |
| High Light | ESP32 7.0-inch TFT LCD,WiFi esp32 display module,Bluetooth esp32 display module |
||
Product Description
ESP32 7.0-inch TFT LCD supports WiFi Bluetooth LCD display module LVGL development board
The ESP32 7.0-inch TFT LCD LCD display module is a powerful embedded device with a 7.0-inch high-resolution TFT LCD display and ESP32 microcontroller, supporting WiFi and Bluetooth connectivity. The display module also has a touch screen function, which can be input using fingers or stylus. In addition, it also has an open design that can be easily integrated into various custom applications. This device is suitable for various application scenarios, including IoT smart home, industrial control, intelligent agriculture, medical equipment, etc. By programming the ESP32 microcontroller, you can control the output of the display screen and process user input.
| Name | ESP32-8048S070R |
| Size | 7inch |
| Resolution | 800*480 |
| Touch | resistive touch |
| Brightness | 800 nits |
| Operating temperature | -20℃~70℃ |
| storage temperature | -30℃~80℃ |
| Operating Voltage | 5V |
| Type | TFT |
Features
Microcontroller: ESP32(dual-core 32-bit processor, clock speed up to 240MHz-RRB-
display size: 7-inch
resolution:800X480x480
display color: 16-RGB RGB, supp65K 65K color
display angle: wide viewing angle, non-distortion or color-changing
brightness: high brightness, can clearly show the response time under strong light conditions: Fast Response, display fast moving image and animation
storage: 8MB PSRAM and 16MB Flash
working voltage: 4.75-5.25V
working temperature: -20 ℃~ 70 ℃
size: 180mm x 120mm x 50mm (including the shell)
weight: about 200g
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Application scope:
1. Control smart home devices such as lighting, air conditioning, curtains, etc.
2. Monitor and control industrial equipment, such as robots, sensors, PLCs, etc.
3. Monitor and control agricultural equipment, such as temperature, humidity, lighting, etc.
4. Produce various medical equipment, such as medical monitors, medical imaging equipment, etc.
5. Produce intelligent transportation equipment, such as traffic lights, intelligent parking lots, etc
FAQ
How do TFT LCD modules work?
TFT LCD modules work by using a backlight to illuminate the display and using a matrix of thin-film transistors to control the color and brightness of each pixel. The transistors are controlled by a controller chip, which receives signals from a microcontroller or other source.
What is the difference between TFT LCD and OLED displays?
TFT LCD displays use backlight to illuminate the display, while OLED displays use organic compounds to emit light. OLED displays provide better contrast and color reproduction, but they are more expensive and have a shorter lifespan compared to TFT LCD displays.
