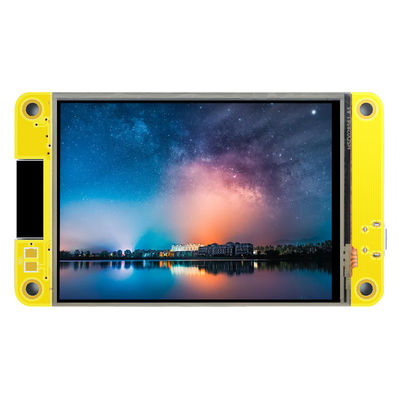

2.8 inch tft color display LED backlight brightness high and low power consumption module 240 * 320 yellow PCB
| Place of Origin | china |
|---|---|
| Model Number | ESP32-2432S028R |
| Minimum Order Quantity | 30PCS |
| Price | ￥75/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.8inch | Storage Temperature(°C) | -30℃~80℃ |
|---|---|---|---|
| Operating Temperature(°C) | -20℃~70℃ | Resolution | 240*320 |
| Touch | Resistance Touch | Driver Chip | ILI9341 |
| Brightness | 300 Nits | ||
| High Light | low power consumption tft color display,240 * 320 tft color display,Yellow PCB tft color display |
||
Product Description
2.8 inch tft color display LED backlight brightness high and low power consumption module 240 * 320 yellow PCB
The 2.8 inch 240x320 TFT LCD resistance touch display module with Arduino LVGL is a versatile and easy-to-use display module that can be used in various applications and projects. It offers high resolution, accurate touch input, and LVGL support, making it an ideal choice for embedded systems and DIY electronics.
The 2.8 inch 240x320 TFT LCD resistance touch display module with Arduino LVGL can be used in a wide range of applications, including:
1.Embedded systems: The module can be used in embedded systems projects that require a display to provide information or user interaction, such as smart home devices, industrial automation systems, and robotics projects.
2.Portable devices: The module can be used in portable devices that require a small, high-quality display, such as gaming consoles, handheld measurement instruments, and portable media players.
3.DIY electronics: The module can be used in DIY electronics projects, such as creating a digital picture frame, a weather station, or a smart mirror.
4.Education: The module can be used in educational settings to teach students about embedded systems and programming, or to create interactive displays for science projects and demonstrations.
5.Prototyping: The module can be used for prototyping new products or ideas that require a display, allowing developers to quickly test and iterate on their designs.
Features
1. Microcontroller: ESP-WROOM-32 module
2. Display: 2.8-inch color touch screen
3. Touchscreen:Resistance touch
4. Connectivity: The board supports Wi-Fi and Bluetooth connectivity,
5. Memory: The board has 8MB of PSRAM and 16MB of flash memory
6. Programming language: Arduino and MicroPython
ESP32-2432S028R Product introduction
1.The ESP32 is a highly capable microcontroller with a dual-core 32-bit processor, clocked at up to 240MHz. This makes it powerful enough to handle complex tasks and applications.
2. The board has 8MB of PSRAM (pseudo-static RAM) and 16MB of flash memory. This provides ample storage space for data and applications, and allows for fast program execution.
3. The standard 2.8-inch TFT screen has a resolution of 320x240 pixels, which is suitable for displaying text, graphics, and other visual elements.
4. The board is equipped with a resistor TP touchscreen, which provides a simple and cost-effective option for touch interaction. The touchscreen can be used to create user interfaces that are intuitive and easy to use.
5. The board supports one-key automatic download, which makes it easy to program and update the firmware. This feature allows developers to quickly iterate and test their applications.
6. The board includes the LVGL (Light and Versatile Graphics Library) demo, which allows developers to create user interfaces, animations, and other visual effects. LVGL is a powerful and flexible graphics library that is easy to use and customize.
7. The board is compatible with Arduino and MicroPython, which are popular programming languages for IoT and embedded applications. This allows developers to choose the programming language that best suits their needs.
8. The board comes with Arduino examples, which provide a starting point for developing applications. These examples can be customized and modified to fit specific requirements.
FAQ
What are the advantages of esp32 ?
ESP32 has advantages such as dual core processors, low power consumption, Wi Fi and Bluetooth capabilities, rich peripheral interfaces, abundant development resources, and ease of development. These advantages make ESP32 an excellent choice in fields such as smart homes, the Internet of Things, and smart wearables
What SD cards are supported by the SDIO/SPI interface of ESP32?
SDSC card: Standard capacity SD card with a capacity of 2GB or less.
SDHC card: High capacity SD card with a capacity between 2GB and 32GB.
SDXC card: Expansion capacity SD card, with a capacity between 32GB and 2TB.
How do TFT LCD modules work?
TFT LCD modules work by using a backlight to illuminate the display and using a matrix of thin-film transistors to control the color and brightness of each pixel. The transistors are controlled by a controller chip, which receives signals from a microcontroller or other source.
What is the difference between TFT LCD and OLED displays?
TFT LCD displays use backlight to illuminate the display, while OLED displays use organic compounds to emit light. OLED displays provide better contrast and color reproduction, but they are more expensive and have a shorter lifespan compared to TFT LCD displays.
