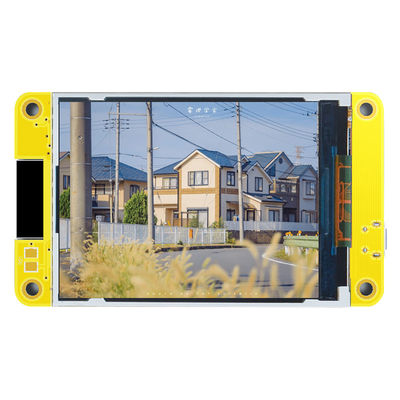

RGB 65K Color ESP32 Module 50.0*86.0(mm) for IoT Applications 2.8 inch LCD display screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xEffective Display Area | 43.2*57.6(mm) | Driver Chip | ILI9341 |
---|---|---|---|
Resolution | 320*240(Pixel) | Type | TFT |
Product Weight | About 50g | Operating Temperature | -20℃~70℃ |
Module Size | 50.0*86.0(mm) | SKU | ESP32-2432S028N |
High Light | IoT ESP32 Module,65K ESP32 Module,RGB esp32 display module |
Product Description:
Smart LCD Module is a liquid crystal display with a 2.8-inch diagonal size, with a RGB 65K Color and Resistive touch sensor. It has a module size of 50.0*86.0(mm) and an effective display area of 43.2*57.6(mm). This module is equipped with an ESP32-2432S028N controller and it can withstand storage temperature between -30℃ and 80℃.
Features:
- Product Name: Smart LCD Module
- Operating Voltage: 5V
- Resolution: 320*240(Pixel)
- SKU: ESP32-2432S028R
- View: >60°
- Display color: RGB 65K Color
Technical Parameters:
Product Attribute | Parameter |
---|---|
Resolution (Pixel) | 320*240 |
Effective display area (mm) | 43.2*57.6 |
Display color | RGB 65K Color |
Type | TFT |
Driver chip | ILI9341 |
Product weight (g) | About 50 |
Operating temperature (℃) | -20~70 |
Module size (mm) | 50.0*86.0 |
Operating Voltage (V) | 5V |
View | >60° |
Touchscreen | No touch |
Screen size | 2.8 inches |
Applications:
Smart LCD Module ESP32-2432S028R is an excellent product with a wide range of applications. It is made in China and is suitable for operating temperature from -20℃ to 70℃. This LCD module features a display color of RGB 65K Color and a size of 2.8 inches, making it ideal for a wide variety of projects and applications. Also, it has a wide viewing angle of more than 60° and an operating voltage of 5V.
This Smart LCD Module is equipped with resistive touch technology, making it very sensitive and accurate. It is ideal for applications such as gaming, home automation, remote control, industrial automation, and more. With its 2.8 inches size, it is perfect for portable devices, especially for applications where space is limited. Moreover, its resistive touch technology makes it an ideal tool for easy and intuitive user interaction.
Smart LCD Module ESP32-2432S028R is a great choice for a wide range of applications, thanks to its wide operating temperature range, its RGB 65K Color display, and its resistive touch technology. With its 2.8 inches size, it is perfect for portable devices, and its wide viewing angle makes it ideal for a variety of projects and applications.
Customization:
This smart LCD module is made of high-quality liquid crystal with a 2.8 inches display area. It is equipped with a resistive touch control panel and has a power consumption of about 90mA. It can work with a 5V operating voltage and has an effective display area of 43.2*57.6mm. It is also lightweight with a total product weight of about 50g. Place of origin is China.
Support and Services:
We are committed to providing our customers with premium technical support and service for Smart LCD Modules.
- 24/7 online support
- Phone, email, and chat support
- In-person support from certified technicians
- Access to online resources, including FAQs, tutorials, and user guides
- Software and firmware updates
- Repairs and replacements
- Access to a global network of certified technicians
- Fast turnaround on repairs and replacements
- Dedicated customer service team
- Discounts on extended warranties
Packing and Shipping:
- The Smart LCD Module is safely packaged with thick foam and shock-resistant bubble wrap for protection during shipment.
- The package is sealed to prevent any dust or moisture from entering.
- The package is shipped via a secure and reliable courier service.
FAQ:
- Q: What is the model number of the Smart LCD Module?
A: The model number of the Smart LCD Module is ESP32-2432S028R. - Q: Where is the Smart LCD Module from?
A: The Smart LCD Module is from China. - Q: What are the features of the Smart LCD Module?
A: The Smart LCD Module has a high-resolution display, the latest touch technology, and a slim design. - Q: What type of interface does the Smart LCD Module have?
A: The Smart LCD Module has an SPI and I2C interface. - Q: How does the Smart LCD Module connect to a device?
A: The Smart LCD Module can connect to a device through the SPI or I2C interface.
