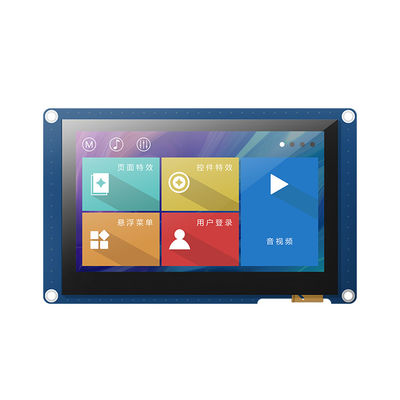

Capacitive Touch 4.3 Inch Lcd Screen HMI Tft Display 480x270 Code Free With Font Image
| Place of Origin | China |
|---|---|
| Model Number | TJC4827X543-011C |
| Minimum Order Quantity | 50PCS |
| Price | ￥179/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Model | TJC4827X543-011C |
|---|---|---|---|
| Resolution | 480*272 | Touch | Capacitive Touch |
| Display Color | RGB 65K Color | Operating Voltage | 5V |
| Highlight | Capacitive Touch 4.3 Inch Lcd Screen,4.3 Inch Lcd Screen HMI 480x270,HMI Tft Display 480x270 Code Free |
||
Product Description
4.3inch Capacitive touch HMI 4.3" serial port screen 480 * 270 code-free with font image support video playback

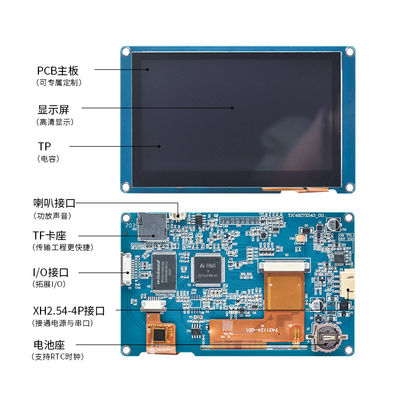

TJC4827X543_011C :4.3-inch liquid crystal display 65krgb true color, 480 * 272 resolution, 300nit brightness, 30000 hours of backlight life, configuration of capacitive touch screen sensitivity, touch feel very good; Comes with 128MB flash, plus TF card storage bits and IO extensions XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface Very convenient, plug and play

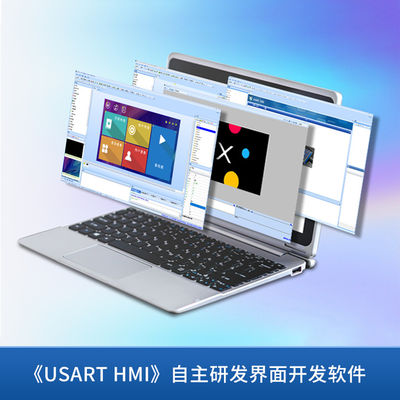

Editor is a free human-machine interface (HMI) GUI development software The software offers an easy way to create an intuitive and superb touch user interface even for beginners.
Add a static picture as a background, define functions by components, you can make a simple GUI in minutes.
The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
