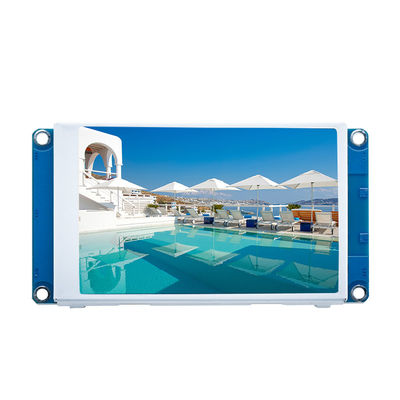

480x320 HMI Module 3.5 Touch Screen Lcd Module Without Touch Code Free Font Image
| Place of Origin | China |
|---|---|
| Model Number | TJC4832T135_011N |
| Minimum Order Quantity | 50PCS |
| Price | ￥110/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.5inch | Resolution | 480*320 |
|---|---|---|---|
| Touch | Without Touch | Display Area Dimensions | 73.44mm（L）×48.96mm（W） |
| External Dimensions | 100.5（L）×56.15（W）×6.75（H） | Flash | 8MB |
| Display Color | 65K（65536） | ||
| Highlight | 480x270 HMI Module,HMI Module 3.5 Touch Screen,3.5 Touch Screen Lcd Module 480x270 |
||
Product Description
3.5-inch without touch HMI 3.5” serial port screen 480*320 code-free font image
Hardware Feature
3.5” LCD-TFT Resistive HMI touch display module
480 x 320 screen resolution
RGB 65K true-to-life colours
Onboard ARM® Cortex®-M0+ 64MHz MCU
3584 Byte SRAM
16 MB Flash memory
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
human-machine interface (HMI) GUI development software for
.The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
