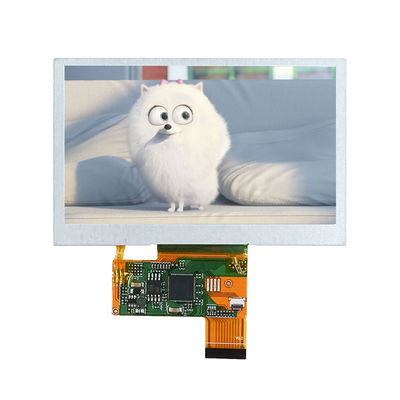

4.3 Inch HMI IPS LCD Module COF Thin 800x480 Lcd Display Without Touch Playing Animation
| Place of Origin | China |
|---|---|
| Model Number | TJC8048X243_011N_F |
| Minimum Order Quantity | 50PCS |
| Price | ￥110/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Without Touch | Display Area Dimensions | 95.04mm（L）×53.86mm（W） |
| External Dimensions | 105.50（L）×67.20（W）×4.60（H） | Flash | 16MB |
| Display Color | 65K（65536） | ||
| Highlight | 4.3 Inch HMI IPS LCD Module,LCD Module COF Thin 800x480,800x480 Lcd Display Without Touch |
||
Product Description
4.3-inch without touch COF thin HMI 4.3” serial port screen 800 * 480 code-free font image Support for playing animatio
TJC8048X243_011N_F includes hardware part (a series of TFT boards) and software part (theNextion editor). TJC8048X243_011N_F TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this Editing software, designing a GUI is a piece of cake.
Features
- 4.3inch IPS
- 800 x 480 Resolution
- RGB 65K true to life colours
- Easy 4 pin interface to any TTL Serial Host For duino
- 4M Flash memory for User Application Code and Date
- On board micro-SD card for firmware upgrade
- Visual Area:108mm(L)×64.8mm(W)
- Adjustable Brightness:0~300 nit, the interval of adjustment is 1%
- 5V210mA power conusmption
FPC flat wire pin definition:
1.GND
2.GND
3.NRST
4.NC
5.NC
6.RXD
7.TXD
8.TF_CS
9.SPI_MOSI
10.SPI_CLK
11.SPI_MISO
12.NC
13.3.3V
14.3.3V
