Driver IC ILI9488 SPI Display Module 3.5 Inch 480x320 Lcd Tft Display Module
| Place of Origin | China |
|---|---|
| Model Number | JC3248R035R |
| Minimum Order Quantity | 300 |
| Price | ￥65/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.5inch | Resolution | 320*480 |
|---|---|---|---|
| Touch | Resistive Touch | Name | JC3248R035R |
| Driver IC | ILI9488 | External Dimension | 99.0(L)X54.9(W)MM |
| Highlight | Driver IC ILI9488 SPI Display Module,SPI Display Module 3.5 Inch 480x320,480x320 Lcd Tft Display Module |
||
Product Description

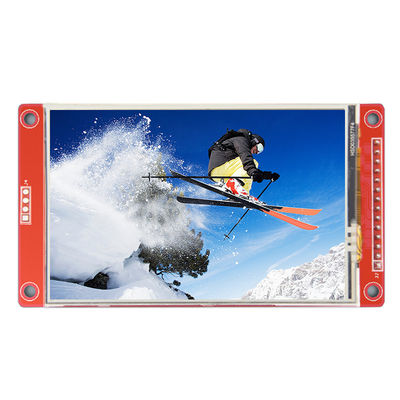

3.5 inch Resistive touch SPI LCD TFT Module TFT display Module 3.5 Inch 480*320 SPI Panel Driver IC ILI9488 Support
Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information:
The LCD module hardware circuit comprises two parts: an LCD display control circuit and a backlight control circuit.
The LCD display control circuit is used to control the pins of the LCD, including control pins and data transfer pins.
The touch screen control circuit can control touch screen touch corresponding and touch coordinate reading (touch screen optional).
The backlight control circuit is used to control the backlight to be on and off. Of course, if the backlight is not required to be controlled, the backlight control pin can be directly connected to the 3.3V power supply without using the circuit.
The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9488 with a resolution of 320x480 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.
● 3.5-inch color screen,support 65K color display,display rich colors ·
● 320X480 resolution with optional touch function·
● Using the SPI serial bus, it only takes a few IOs to illuminate the display·
● Easy to expand the experiment with SD card slot·
● Military-grade process standards, long-term stable work ·
● Provide underlying driver technical support·
| Name | Parameter |
| SKU | JC3248R035R |
| Display Color | RGB 65K color |
| Touch mode | Resistive touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 320*480 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 73.44(L))X48.96(W)MM |
| External dimension | 99.0(L)X54.9(W)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 55(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | D/C | Control register selection |
| 6 | SDI(MOSI) | Control data transmission |
| 7 | SCK | Clock signal |
| 8 | LED | Backlight control, high level lighting, connected to 3.3V |
| 9 | SDO(MISO) | SPI bus read data signal |
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip selection signal, low-level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
