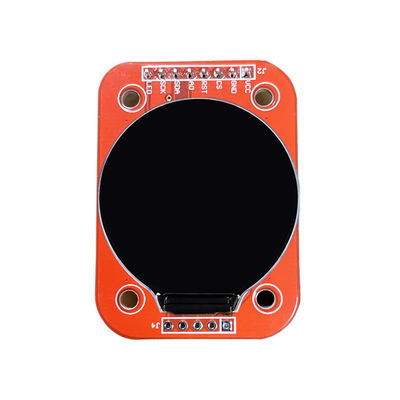

1.28 Inch SPI Display Module TFT LCD Display Module GC9A01 Round Display 240x240
| Place of Origin | China |
|---|---|
| Model Number | JC2424S012N |
| Minimum Order Quantity | 300 |
| Price | ￥42/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1.28inch | Resolution | 240*240 |
|---|---|---|---|
| Touch | Without Touch | Name | JC2424S012N |
| External Dimension | 50.0(L)X36.0(W)X3.1(H)MM | Driver IC | GC9A01 |
| Highlight | 1.28 inch SPI Display Module,240x240 TFT LCD Display Module,GC9A01 Round Display 240x240 |
||
Product Description
1.28 inch TFT LCD Display Module 1.28”Round Full IPS 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution
Provide 51 MCU, stm32 MCU, copy the download link to the browser to download the information:
The GC9A01 controller supports a maximum resolution of 132*162 and a 48114-byte GRAM. It also supports 8-bit, 9-bit, 16-bit, and 18-bit parallel port data buses. It also supports 3-wire and 4-wire SPI serial ports. Since parallel control requires a large number of IO ports, the most common one is SPI serial port control. The GC9A01 also supports 65K, 262K RGB color display, display color is very rich, while supporting rotating display and scroll display and video playback, display in a variety of ways.
● 1.28-inch color screen,support 65K color display,display rich colors ·
● 240X240 resolution, clear display·
● IPS glass, full view display ·
● Round display screen, good display effect ·
● Using the SPI serial bus, it only takes a few IOs to illuminate the display·
● Easy to expand the experiment with SD card slot·
● Military-grade process standards, long-term stable work ·
● Provide underlying driver technical support·
| Name | Parameter |
| SKU | JC2424S012N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 1.28(inch) |
| Type | TFT |
| Driver IC | GC9A01 |
| Resolution | 240*240 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 32.4(L)X32.4(W)MM |
| External dimension | 50.0(L)X36.0(W)X3.1(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | IPS Full view |
| Product Weight(Package containing) | 13(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | A0 | Control register selection |
| 6 | SDA | Control data transmission |
| 7 | CLK | Clock signal |
| 8 | LED | Connected to 3.3V |
