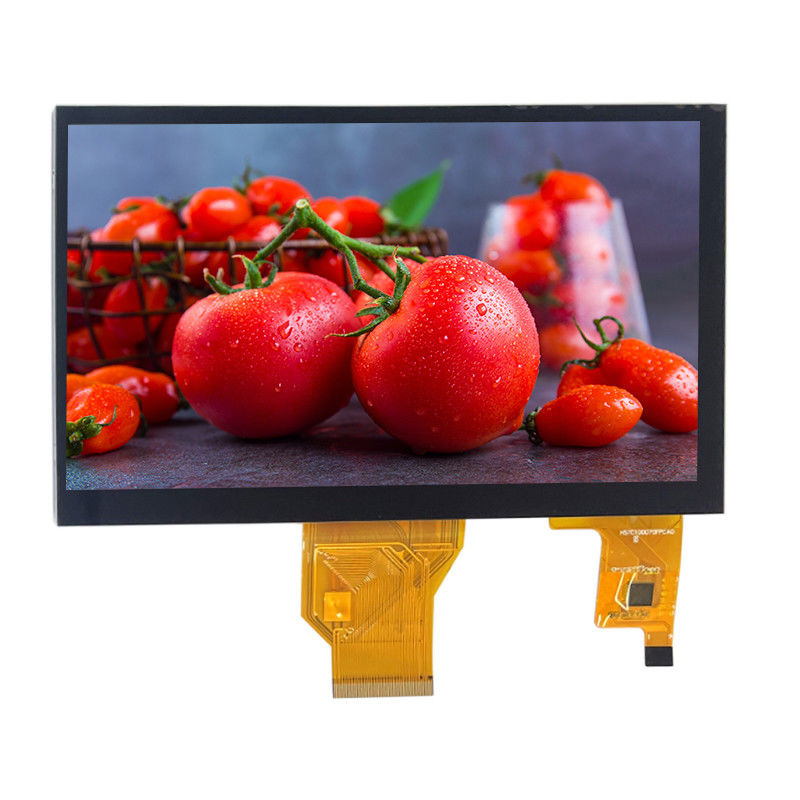

800x480 Parallel LCD Display 50PIN RGB 7 Inch Capacitive Touch Screen Display
| Place of Origin | China |
|---|---|
| Model Number | JC8048B070C |
| Minimum Order Quantity | 500 |
| Price | ￥105/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 7.0inch | Models | JC8048B070C |
|---|---|---|---|
| Resolution | 800*480 | Touch | Capacitive Touch |
| Brightness | 350 Nits | Panel Type | TN |
| Highlight | 800x480 Parallel LCD Display,RGB 7 Inch Capacitive Touch Screen,50PIN 7 inch capacitive touch screen display |
||
Product Description
7.0 inch Capacitive touch 800xRGBx480 Driver 350 bright TFT lcd display module 50PIN RGB
7" inch RGB Interface Touch Screen Description
1, JC8048B070C is a 7” inch IPS type full viewing angle TFT LCD Display with resolution of 800*480 pixels. It is with Capacitive Touch Screen(CTP), and the cover glass is customizable.
2, TFT LCD module is has outline dimension of 164.7*99*2.6 mm, and AA size of 154.21x85.92 mm.
3, LCM interface is with RGB interface, 30 pins. The CTP interface is I2C.
4, touch screen is with 500cd/m2 (nits) surface brightness, it also can be designed to be 1000cd/m2 (nits). pls contact our sales person for more details.
5, This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.
Essential details
| ILI6122 |
