ILI9341V 2.4 Inch Tft Display 240*320 320*240 Tft Display Screen 2.4 Inch 37PIN
| Place of Origin | China |
|---|---|
| Model Number | JC2432A024N |
| Minimum Order Quantity | 500 |
| Price | ￥33/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.4inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Without Touch | ||
| Highlight | ILI9341V 2.4 Inch Tft Display,2.4 Inch Tft Display 240*320 37PIN,320*240 Tft Display Screen 2.4 Inch |
||
Product Description

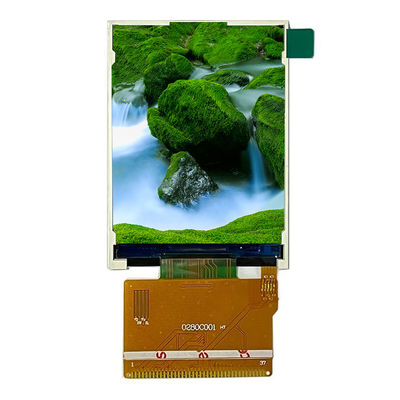

2.4 inch Without Touch 2.4" 240*320 320*240 ILI9341V Tft display Screen 2.4 inch Parallel LCD TFT Module
2.4 inch TFT RGB 37PIN 240X320 LCD DISPLAY SCREEN MODULE
TFT color display screen:production of 0.96 - 10.1 inch display screen.Interface: 24-bit, 16-bit, 8-bit interface, SPI interface.with Touch screen(resistance or capacitance) Support interface and size customization.
240x320 40pin Ili9341 RGB Interface 2.4 Inch Color Tft Lcd Display Touch Screen Module
Size: 2.4”
Dimensions: 42.72*60.26*2.2/3.2mm
Visual area: 36.72*48.96mm
Brightness: 300cd/m^2
Viewing angle: super wide viewing angle (wide viewing angle) 60/60/35/50
Drive IC: ILI9341
Number of cable PIN: 37PIN
Interface type: MCU 8080 parallel port 8/16bit, SPI3/4 line serial port
Cable spacing: 0.5mm
Connection method: plug
Working temperature: -20 ° C -70 ° C
Storage temperature: -30 ° C -80 ° C
