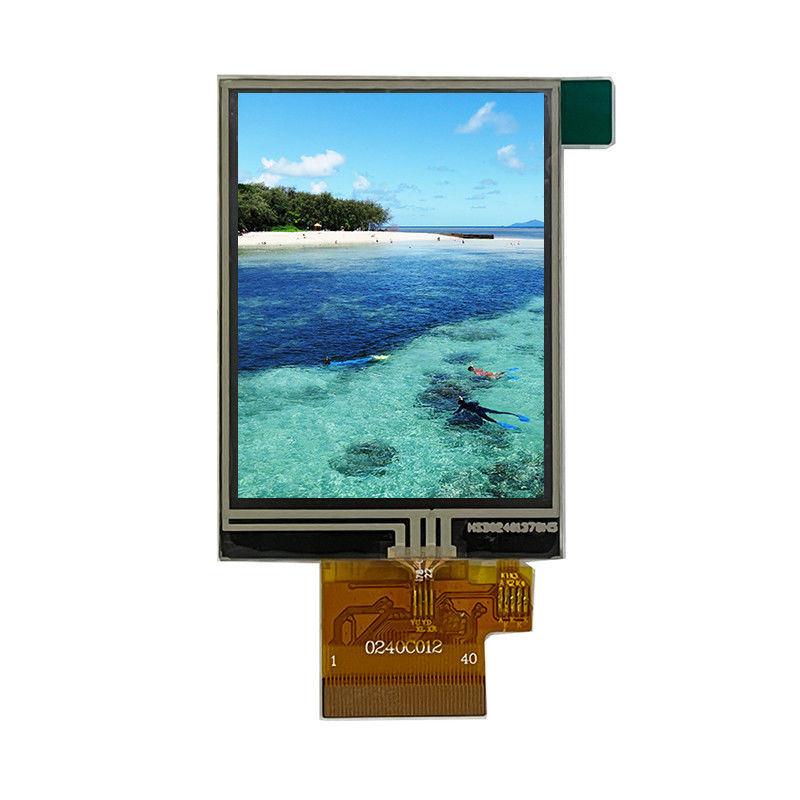

2.4 Inch Resistive Touch TFT Display Module 240*320 40P Socket MCU 2.4 Tft Display 8080

Name: 2.4 Inch Resistive Touch TFT Display Module 240*320 40P Socket MCU 2.4 Tft Display 8080
Brand: Shenzhen Jingcai Intelligent Co., Ltd.
SKU: JC2432C024R
Price: 39 USD
Availability: InStock

Model Number:	JC2432C024R
MOQ:	500
Price:	￥39/pcs
Payment Terms:	L/C, T/T
Supply Ability:	5000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

2.4inch

Model:

JC2432C024R

Resolution:

240*320

Touch:

Resistive Touch

Driver IC:

ILI9341

Operating Voltage:

3.3V

Highlight:

2.4 Inch Resistive Touch TFT Display Module

40P Socket MCU 2.4 Tft Display

TFT Display Module 240*320 40P 8080

Product Description

2.4 inch Resistive touch 240*320 TFT LCD display screen 40P Socket MCU I8080 816BIT SPI 3/4 wire Wide viewing angle

JC2432C024R 240*320 ST7789v 40 Pin SPI MCU RGB 2.4" TFT LCD Display 2.4 Inch ST7789 Touch Color Screen

Resolution 240XRGBX320 Driver chip ST7789V MCU parallel port 18080 40PIN plug-in type (8/16 bit compatible) Interface type MCU serial port SPI 40PIN plug-in type (3/4 line compatible) Serial SPI without touch requires only 4 10 ports With touch, only 9 10 ports are required. PINRi distance 0.5mm Appearance size 42.72 (W) *60.26(H)*2.25(T)mm Display size 36.72(W)*48.96(H)mm Backlight type LED*4, current: 60mA Voltage Operating voltage IOVCC-2.8/3.3V. VCC-3.3V Power consumption LCD driver maximum power consumption is about 1.0mA in black screen Operating temperature -20° C –+70° C Storage temperature -30° C-+80° C Viewing angle 12:00 o' clock Touch with tempered touch screen

Display Type:	TFT-LCD display
Display Mode:	TN
Model Number:	2.4 inch 240x320
Diagonal Screen size:	2.4 inch
Number of Pixels:	240x320
Panel Size:	42.720 x60.26 x2.2 (mm)
Driver IC:	ILI9341
Active Area:	36.72x48.96 (mm)
Pixel Pitch:	0.1245 x 0.1245 (mm)
Operating Temperature:	-20~70°

Overview

Essential details

Type:: COG

Display Size:: 2.4

Place of Origin:: Guangdong, China

Display Mode:: IPS TFT display

Driver IC:: ST7789

Interface:: CPU ( 80-system, 9bit 2 transfer )

Display Color:: 262,144 Colors (Maximum)

Number of Pixels:: 240x320

Panel Size:: 42.72 x60.26 x2.2 (mm)
