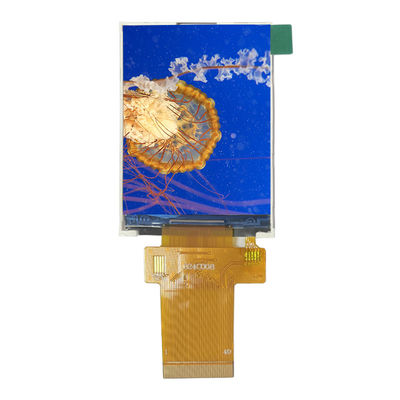

8080 2.4 Inch Lcd Module 240x320 Touch Screen Module For Arduino 16BIT SPI 4 Wire
| Place of Origin | China |
|---|---|
| Model Number | JC2432C024N |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.4inch | Model | JC2432C024N |
|---|---|---|---|
| Resolution | 240*320 | Touch | Without Touch |
| Driver IC | ILI9341 | Operating Voltage | 3.3V |
| Highlight | 8080 2.4 Inch Lcd Module 240x320,240x320 Touch Screen Module For Arduino,Touch Screen Module For Arduino 16BIT |
||
Product Description
2.4 inch Without touch 240*320 TFT LCD display screen 40P Socket MCU I8080 816BIT SPI 3/4 wire Wide viewing angle
2.4" TFT LCD, portrait 2.4 inch QVGA LCD Description
JC2432C024N is a 2.4-inch, vertical/portrait, and active matrix TFT module with transmissive mode. Its resolution is 240x320 pixels. This 2.4-inch TFT display module has controller IC ST7789V supporting RGB interface. The brightness is 300 cd/m2 with contrast ratio 500:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This design is a good fit for industrial application, testing equipment, automation, medical equipment, security equipment etc. The supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.3V. Typical value is 2.8V.
JC2432C024N is an TN type TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details.
Product Description
| Model Number | JC2432C024N |
| Display Type | 2.4 Inch TFT LCD Module |
| Resolution | 240xRGBx320 |
| Outline Size | 42.72x59.46x2.30(mm) |
| Active Size | 36.72x48.96(mm) |
| View Direction | All |
| Interface | MCU+RGB |
| Surface Lumiannce | 300(nits) |
| Driver IC | STILI9341 |
| Operating Temperature | -20--70(℃) |
| Storage Temperature | -30--80(℃) |
