LVGL 7 Inch Resistive Touch Screen ESP32-S3 8M PSRAM Tft Lcd Display Module
| Place of Origin | china |
|---|---|
| Model Number | ESP32-8048S070R |
| Minimum Order Quantity | 30PCS |
| Price | ￥208/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 7inch | Display Color | RGB 65K Color |
|---|---|---|---|
| Resolution | 800*480 | Touch | Resistance Touch |
| PCB Color | Yellow | Driver Chip | EK9716 |
| Effective Display Area | 153.84* 85.63(mm) | Module Size | 181.0*108.0(mm) |
| Highlight | LVGL 7 Inch Resistive Touch Screen,7 Inch Resistive Touch Screen ESP32-S3,8M PSRAM Tft Lcd Display Module |
||
Product Description
7.0 inch Resistance Touch 7 " 800*480 ESP32-S3 8M PSRAM LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module
ESP32 development board-8M PSRAM 16M Flash, standard 7.0-inch TFT screen and Without touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples
Features
-
ESP32-S3 dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz with 384KB ROM, 512KB SRAM. 2.4GHz WiFi and Bluetooth 5
-
PSRAM: 8MB FLASH: 16MB
-

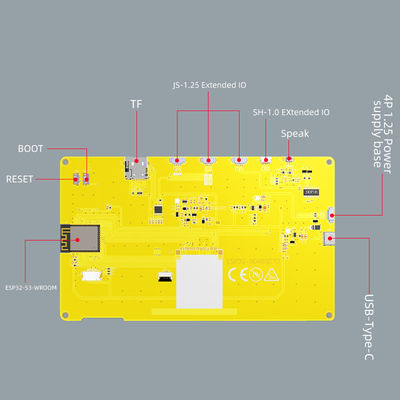

Storage: Micro-SD card slot
-

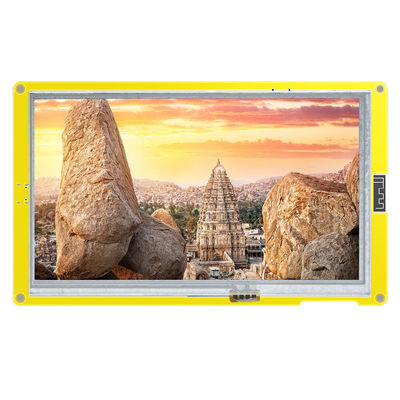

Display: 7.0-inch display with 800×480 resolution
-
Touch mode, resistance touch, touch chip XPT2046
-
Display interface: 16-bits, 8080 parallel communication
-
Audio: Codec, Audio amplifier, speaker
-
USB: 1x USB-C OTG (DFU/CDC) port, 1x USB-C debug port
-
Sensors: 3-axis accelerometer, 3-axis gyroscope, temperature and humidity sensors
-
Peripheral interface: I2C, SPI, GPIOs
-
Miscellaneous: Reset buttons, Boot buttons
-
Power Supply: 5V / 1A
-
Dimension: 181 x 108 mm
-

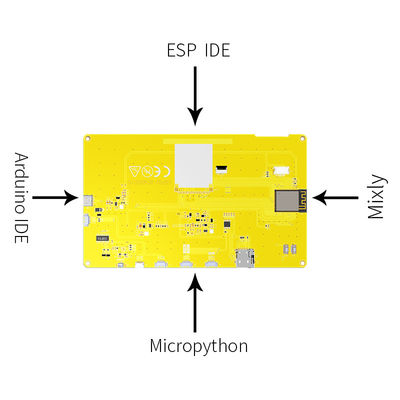

Programming Platform: Arduino-ide ESP-IDF
