800*480 Raspberry Pi Module 5.0 Inch IPS TFT DSI Multi Touch Lcd Display Module
| Place of Origin | China |
|---|---|
| Model Number | JC8048P050N |
| Minimum Order Quantity | 50PCS |
| Price | ￥178/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 5inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Without Touch | Module Weight | 112(g) |
| Name | JC8048P050N | External Dimension | 121.1*77.9mm |
| High Light | 800*480 Raspberry Pi Module 5.0 inch,Raspberry Pi Module TFT DSI,DSI Multi Touch Lcd Display Module |
||
Product Description

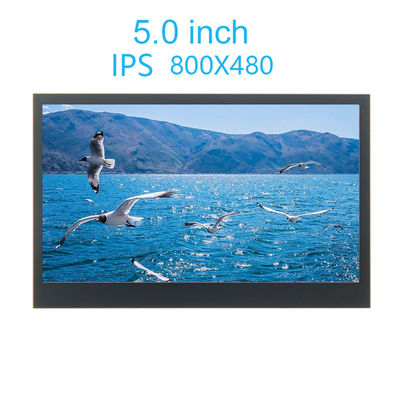

5.0 inch Without Touch Panel 800*480 MIPI IPS TFT DSI Multi-Touch LCD Module Display Monitor Screen for Raspberry Pi
5 Inch MIPI DSI Display HD 800x480 Capacitive Touchscreen Monitor for Raspberry Pi 4/3/2/1/B/B+/A+, Win 7/8/10
Main Features:
Wide Compatibility - 5 inch capacitive touch display is ideal for all versions of the Raspberry PI, including the Raspberry PI 4B 3B+ 3A+ 3B 2B B+ A+ CM3/3. Compatible with Raspbian, Ubuntu Kali, IoT and RetroPie.
Excellent Image Performance - The 5-inch color display has 800x480 pixel resolution, and its IPS wide-angle, toughened glass touchscreen and adjustable backlight features ensure high visual quality. You can also adjust the brightness to suit your environment. No need to worry about short circuit, double image and auto closing.
High Sensitivity Monitor - The 5-inch capacitive touch screen has a 5-point touch function that allows you to slide, scroll, select, zoom, enlarge and move the cursor in 3-5 milliseconds without the need for a physical keyboard or mouse. The touch screen is more sensitive, easy to control, and there is no mistake due to finger enlargement.
Hassle-Free Installation - This professional Raspberry Pi Monitor only needs one FFC line to meet the requirements of touch + display + power supply, no need to worry about messy connection lines, and the structure is more compact and simple.
Driver Free - The touchscreen connects directly to the raspberry Pi via The MIPI DSI interface, works without installing drivers; supports for Raspbain,Ubuntu MATE, Kali, RetroPie without driver programs.
Considerate Package & Comprehensive Accessories - We offers thoughtful packaging that uses thick cotton foam to protect the Raspberry Pi display from strong vibrations, effectively protecting the core components on the back of the touchscreen. The package also includes tiny FFC lines, copper pillars and screws for a touchscreen display that works with Raspberry Pi.
Product Parameters:
Screen Type: IPS
Screen Size: 5 inch
Screen Resolution: 800*480
Screen Interface Type: RGB666
Module Interface Type: MIPI DSI
Touch Screen Type: Without touch
Viewing Angle: IPS Whole perspective/ TN Common view
Active Area: 108.00x64.80(mm)
Working Voltage: 3.3V
maximum Operating Current: 340mA
Module Weight (net weight): 112g
Package Size: 154*143*38(mm)
Package Weight: 165g
Package Included:
1 * 5 inch DSI Display
1 * Set of Monitor Stand
1 * FFC-1.0-15P-10cm-(Reverse)
1 * FFC-1.0-15P-5cm-(Reverse)
4 * Screw(M2.5)
4 * Copper Pillar(M2.5)
