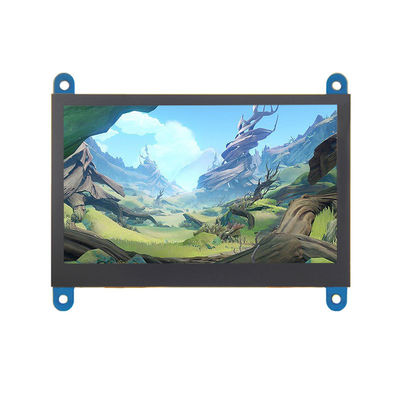

HDMI Compatible Smart LCD Module 0.34A 800x480 4.3 Inch Tft Lcd Module
| Place of Origin | China |
|---|---|
| Model Number | JC8048H043N |
| Minimum Order Quantity | 50PCS |
| Price | ￥160/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3 Inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Without Touch | Name | JC8048H043N |
| Viewing Angle | IPS Full Viewing Angle | Dimensions | 106.00*85.31(mm) |
| High Light | HDMI Compatible Smart LCD Module 0.34A,Smart LCD Module 0.34A 800x480,800x480 4.3 Inch Tft Lcd Module |
||
Product Description
4.3 inch LCD Display Without Touch HDMI-compatible Screen 800x480 Resolution Screen Support Systems for Raspberry
Introduction :
This is the Raspberry Pi 5 inch touch screen , resistive touch , 800x480 resolution. We provide the HDMI-compatible adapter for Raspberry Pi 3 Model B+/3B , and Micro HDMI-compatible adapter for Raspberry Pi 4 Model B. It can also use for PC/Laptop , but without touch on PC.
In order to use this touch screen , you need to configure the Raspberry Pi system , otherwise it can not work. ( the method is in the description )
We specially provide the acrylic holder for the screen , so that you can use it on desktop convenient.
Feature :
1. 4.3inch standard display, 800 × 480 resolution
2. With resistive touch screen, support touch control
3. Support backlight control alone, the backlight can be turned off to save power
4. Supports standard HDMI-compatible interface input, compatible with and can be directly inserted with Raspberry Pi (4B/3B+/3B)
5. Can be used as general-purpose-use HDMI-compatible monitor, for example: connect with a computer HDMI-compatible as the sub-display (resolution need to be able to force output for 800 x480)
6. Used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi(no touch), win10 IOT(no touch)
Please use our recommended system for touch screen. If you use other systems, it may not have touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with our touch screen.
7. Work as a PC monitor, support XP,win7, win8, win10 system(do not support touch)
Specification :
1. Size: 4.3(inch)
2. Resolution: 800*480(dots)
3. Touch: Without touch
4. Product Size: 121.11*77.93(mm)
5. Weight(Package containing): 206(g)
6. Power Dissipation: 0.34A*5V
-
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System
Step 1, Install Raspbian official image
- Download the latest image from the official download.
- Install the system according to the official tutorial steps.
-
How to use as PC monitor
- Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
- Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
- If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
-
How to rotate the display direction
- Method 1,If the driver is not installed, execute the following command (Raspberry Pi needs to connected to the Internet):
-
sudo rm -rf LCD-show git clone https://github.com/goodtft/LCD-show
chmod -R 755 LCD-show cd LCD-show/ sudo ./MPI5001-show
After execution, the driver will be installed. The system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
( ' XXX-show ' can be changed to the corresponding driver, and ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees) - Method 2,If the driver is already installed, execute the following command:
-
cd LCD-show/ sudo ./rotate.sh 90
After execution, the system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
( ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees)
If the rotate.sh prompt cannot be found, use Method 1 to install the latest drivershdmi_force_edid_audio=1 max_usb_current=1 hdmi_force_hotplug=1 config_hdmi_boost=7 hdmi_group=2 hdmi_mode=87 hdmi_drive=2 hdmi_cvt 800 480 60 6 0 0 0
Step 3, Drive the 5inch HDMI Display-B with the Raspberry Pi
Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt file of TF card root directory and add the following code at the end of the file, save and eject Micro SD Card safely:
