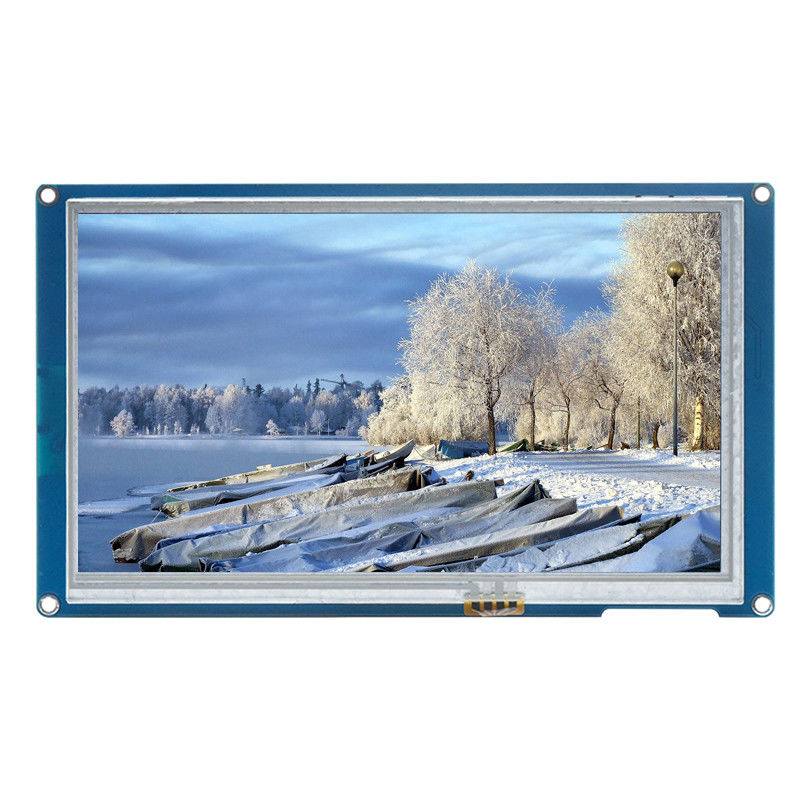

Resistive Touch HMI Display Module 5V 800x480 Raspberry Pi 7 Inch Touch Screen

7.0 inch Resistance touch HMI Display Module 800x480 no code font image support video playback

Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Editor software for HMI GUI project development. Using the software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

Hardware Features

• - TJC8048X570_011CS(7.0'' IPS RGB 65K capacitive touchscreen)

• - Onboard MCU 200MHz and up to 128MB for HMI project

• - Built-in RTC,EEPROM, 8 digital GPIOs (2 PWM capable)

• - 4 pins (+5V, TX, RX, GND) TTL serial interface

• - 300 nit Brightness with 1% interval adjustment

• - Audio interface

• - CE and RoHS Compliant
