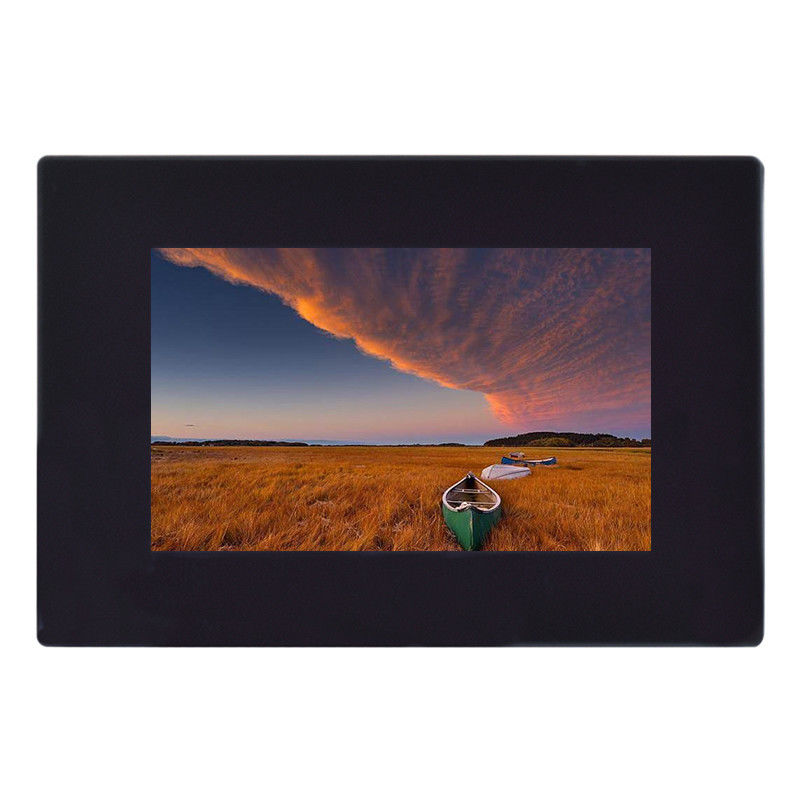

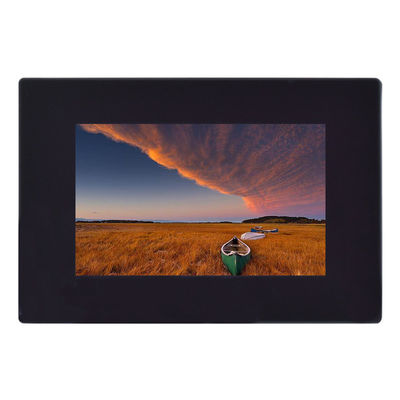

Capacitive Touch HMI Display Module 5V 5 Inch Touch Screen Display 800x480
| Place of Origin | China |
|---|---|
| Model Number | TJC8048X550_011CS_Y |
| Minimum Order Quantity | 50pcs |
| Price | ￥185/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 5.0inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Capacitive Touch | Models | TJC8048X550_011CS_Y |
| Operating Voltage | 5V | Display Color | RGB 65K Color |
| High Light | Capacitive Touch HMI Display Module 5V,HMI Display Module 5V 5 Inch,5 Inch Touch Screen Display 800x480 |
||
Product Description
5.0 inch Capacitive touch with housing 5.0” HMI serial port screen 800 * 480 support for video playback
This is a 5-inch capacitive touch with a case, capacitive touch to make your touch experience better, plastic case packaging to make the appearance of a cleaner, and most importantly, improve the Factor of safety of the product; With a resolution of up to 800 x 480 and real-color RGB 65K, the product has built-in speakers (you can plug in your own) for a better viewing experience
Touch Panel (Resistive /Capacitive is Optional) |
|
| Touch type | Capacitive touch screen |
| Touch mode | Single-point and sliding touch |
| Capacitve screen lighttransmittance | Over 90% |
| Capacitive screen touch time | Theoretically capacitive screen touch time is infinite,the touch life is related to theworking environment. |
Hardware Features
5.0” LCD-TFT Capacitive touch with housing HMI display module
800 x 480 screen resolution
RGB 65K true-to-life colours
Capacitive or Resistive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support
Editor is a free human-machine interface (HMI) GUI development software The software offers an easy way to create an intuitive and superb touch user interface even for beginners.
Add a static picture as a background, define functions by components, you can make a simple GUI in minutes.
The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
