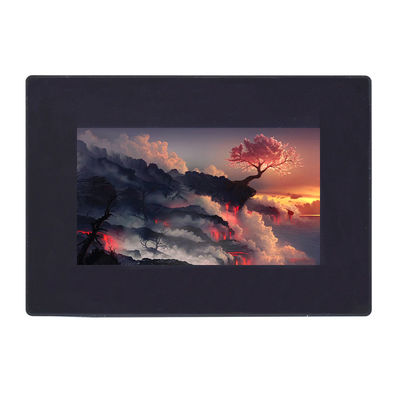

65K Color 480x272 Tft Lcd Display With Housing HMI Lcd Display Support Video Playback
| Place of Origin | China |
|---|---|
| Model Number | TJC4827X543_011RS_Y |
| Minimum Order Quantity | 50pcs |
| Price | ￥185/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3 Inch | Resolution | 480*272 |
|---|---|---|---|
| Touch | Resistance Touch | Operating Voltage | 5V |
| Display Color | RGB 65K Color | Models | TJC4827X543_011RS_Y |
| High Light | 65K Color 480x272 Tft Lcd Display,480x272 Tft Lcd Display With Housing,65K Color HMI Lcd Display |
||
Product Description
4.3 inch Resistance touch with housing 4.3”HMI serial port screen 480 * 272 support for video playback
Parameters
| Product parameters | Data |
| Models | TJC4827X543_011RS_Y |
| colour | RGB 65K |
| Screen Resolution | 480 x 272 (Pixel) |
| Display area | 95.04*53.86(mm) |
| Module Size | 139.5*97.5*21(mm) |
| Brightness | 300 nit |
| Backlight mode | LED |
| Flash memory | 128MB |
| EEPROM | 1024Byte |
| Resolution | 480*320 (Pixel) |
| Module Interface | TTL serial interface (XH2.54 4 Pins (+5V, TX, RX, GND) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Voltage | 5V/3.3V |
Editor is a free human-machine interface (HMI) GUI development software The software offers an easy way to create an intuitive and superb touch user interface even for beginners.
Add a static picture as a background, define functions by components, you can make a simple GUI in minutes.
The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
