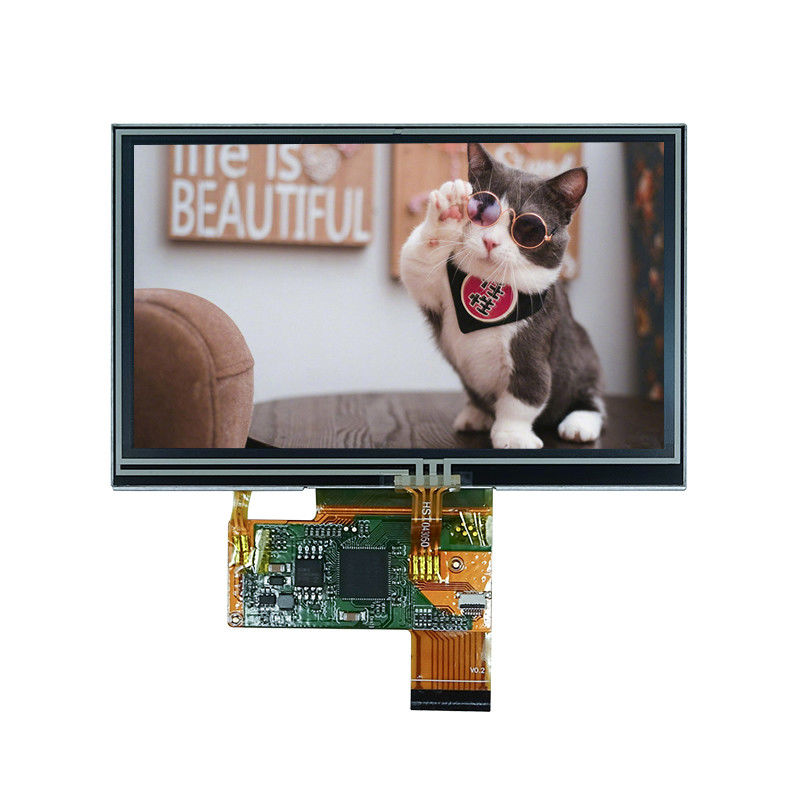

COF Thin HMI Display Module Resistive Touch Tft 4.3 Inch Serial Port Screen 800x480
| Place of Origin | China |
|---|---|
| Model Number | TJC8048X243_011R_F |
| Minimum Order Quantity | 50PCS |
| Price | ￥90/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Resistance Touch | Display Area Dimensions | 95.04mm（L）×53.86mm（W） |
| External Dimensions | 105.50（L）×67.20（W）×4.60（H） | Flash | 16MB |
| Display Color | 65K（65536） | ||
| Highlight | COF Thin HMI Display Module 4.3",800x480 HMI Display Module Resistive Touch,Resistive Touch Tft 4.3 Inch 800x480 |
||
Product Description
4.3-inch Resistance touch COF thin HMI 4.3” serial port screen 800 * 480 code-free font image Support for playing animat
TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Touch parameters
| Type | CTP (Capacitive touch panel) | |||
| Structure | G+G structure with surface cover of Asahi tempered glass | |||
| Touch Mode | Support point touch and drag | |||
| Surface Hardness | 6H | |||
| Light Transmittance | Over 90% | |||
| Life | Over 1,000,000 times touch | |||
FPC wiring pin definition:
| 1 | GND | |
| 2 | GND | |
| 3 | NRST | |
| 4 | NC | |
| 5 | NC | |
| 6 | RXD | |
| 7 | TXD | |
| 8 | TF_CS | |
| 9 | SPI_MOSI | |
| 10 | SPI_CLK | |
| 11 | SPI_MISO | |
| 12 | NC | |
| 13 | 3.3V | |
| 14 | 3.3V |
