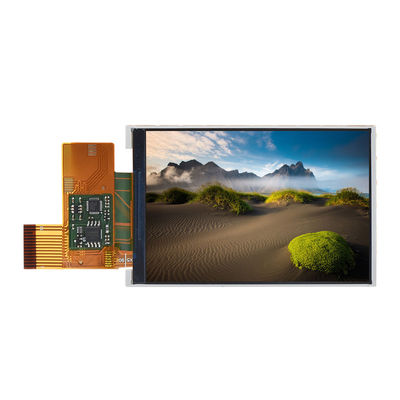

No PCB Board HMI Display Module Touch Screen 3.5 Inch Module 480x270 Medical

No PCB Board HMI Display Module Touch Screen 3.5 Inch Module 480x270 Medical

No PCB Board HMI Display Module Touch Screen 3.5 Inch Module 480x270 Medical

Model Number: TJC4832T135_011N_F
MOQ: 50PCS
Price: ￥110/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Size:
3.5inch
Resolution:
480*270
Touch:
Without Touch
Display Area Dimensions:
73.44mm（L）×48.96mm（W）
External Dimensions:
123.75（L）×54.94（W）×2.3（H）
Flash:
8MB
Display Color:
65K（65536）
Highlight:

Touch Screen 3.5 Inch Module 480x270

,

No PCB Board HMI Display Module

,

HMI Display Module 480x270 Medical

Product Description
3.5-inch without touch COF HMI 3.5” serial port screen 480*270 code-free font image

3.5-inch COF module, is a new serial port screen, the market general 4:3 screen, Resolution 480 * 272, no PCB board, can be used for medical, automation, testing, instrumentation and equipment, etc. , the product is powered by FPC to light up the use, greatly saving product space and design costs for customers


FPC wiring pin definition
1 GND
2 GND
3 NRST
4 NC
5 NC
6 RXD
7 TXD
8 TF_CS
9 SPI_MOSI
10 SPI_CLK
11 SPI_MISO
12 NC
13 3.3V
14 3.3V
