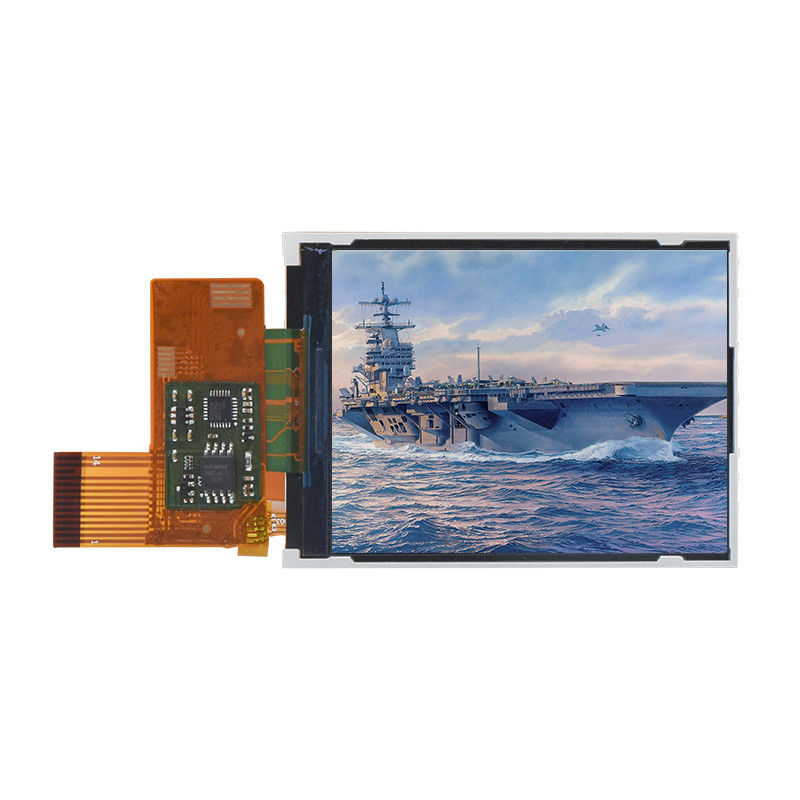

COF 240x320 HMI Lcd Display 2.8 Tft Lcd Display Without Touch 8MB

Model Number:	TJC3224T128_011N_F
MOQ:	500PCS
Price:	￥40/PCS
Payment Terms:	L/C, T/T
Supply Ability:	5000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

2.8inch

Resolution:

320*240

Touch:

Without Touch

Display Area Dimensions:

57.6mm（L）×43.2mm（W）

External Dimensions:

107.5（L）×50（W）×2.25（H）

Flash:

8MB

Display Color:

65K（65536）

Highlight:

COF 240x320 HMI Lcd Display

HMI Lcd Display 8MB

2.8 Tft Lcd Display Without Touch

Product Description

2.8-inch without touch COF HMI 2.8” serial port screen 240*320code-free font image

human-machine interface (HMI) GUI development software for
.The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.

FPC wiring pin definition:

1.GND

2.GND

3.NRST

4.NC

5.NC

6.RXD

7.TXD

8.TF_CS

9.SPI_MOSI

10.SPI_CLK

11.SPI_MISO

12.NC

13.3.3V

14.3.3V

COF 240x320 HMI Lcd Display 2.8 Tft Lcd Display Without Touch 8MB 0
