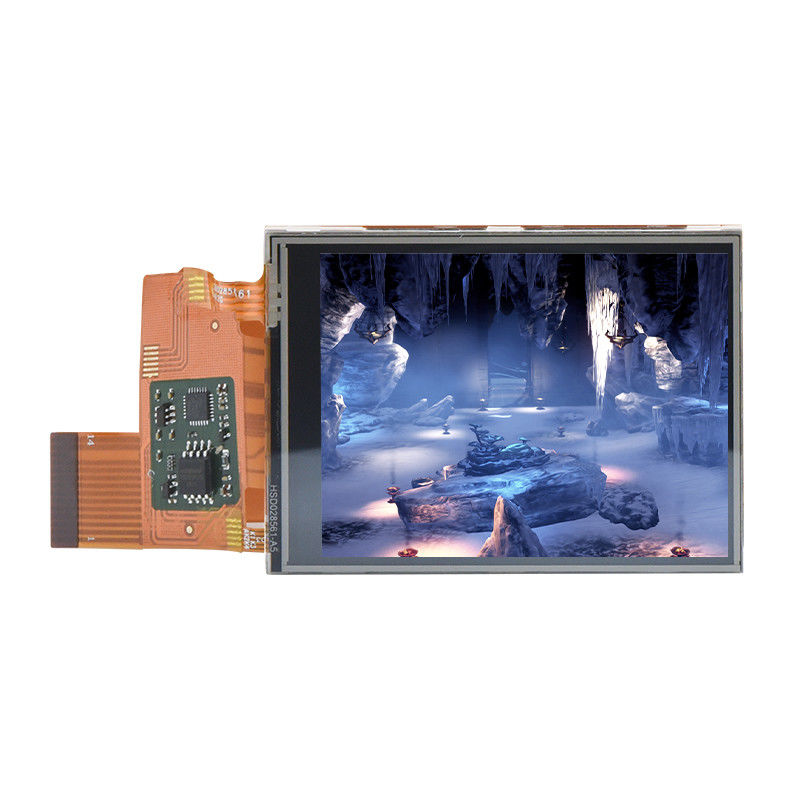

240x320 Human Machine Interface Control Module Resistive 2.8 Inch Lcd Tft Display

240x320 Human Machine Interface Control Module Resistive 2.8 Inch Lcd Tft Display

240x320 Human Machine Interface Control Module Resistive 2.8 Inch Lcd Tft Display

Model Number: TJC3224T128_011R_F
MOQ: 500PCS
Price: ￥45/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Size:
2.8inch
Resolution:
320*240
Touch:
Resistance Touch
Display Area Dimensions:
57.6mm（L）×43.2mm（W）
External Dimensions:
107.5（L）×50（W）×3.45（H）
Flash:
8MB
Display Color:
65K（65536）
Highlight:

240x320 Human Machine Interface Control Module

,

2.8 Inch Lcd Tft Display module 240x320

,

Resistive 2.8 Inch Lcd Tft Display

Product Description
2.8-inch Resistance touch COF HMI 2.8” serial port screen 240*320code-free font image



2.8-inch COF module, is a new ultra-thin HMI serial interface screen, LCD screen using ST7796S chip, unlike conventional products, there is no PCB board, through FPC power lighting use, the FPC has 14 pins that are annotated below; it can also be used with a touch screen, which is a great way to save space and cost

FPC wiring pin definition:
1.GND
2.GND
3.NRST
4.NC
5.NC
6.RXD
7.TXD
8.TF_CS
9.SPI_MOSI
10.SPI_CLK
11.SPI_MISO
12.NC
13.3.3V
14.3.3V




human-machine interface (HMI) GUI development software for. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
