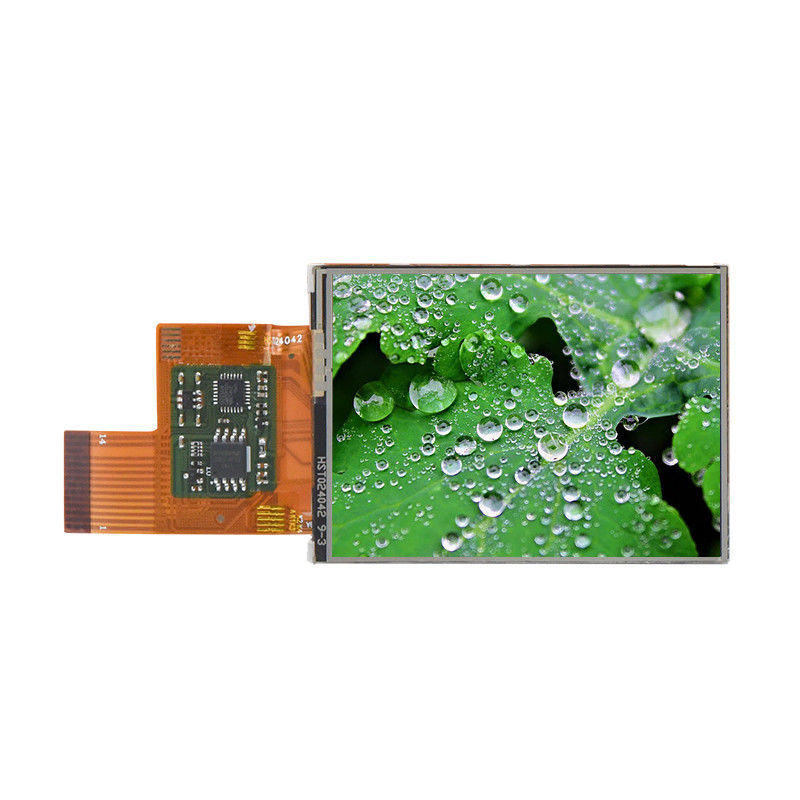

COF 65K Human Machine Interface Module HMI Lcd Tft 2.4 Inch Without Touch
| Place of Origin | China |
|---|---|
| Model Number | TJC3224T124_011N_F |
| Minimum Order Quantity | 500PCS |
| Price | ￥39/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.4inch | Resolution | 320*240 |
|---|---|---|---|
| Touch | Without Touch | Display Area Dimensions | 48.96mm（L）×36.72mm（W） |
| External Dimensions | 98.51（L）×42.72（W）×2.2（H） | Flash | 8MB |
| Display Color | 65K（65536） | ||
| Highlight | COF 65K Human Machine Interface Module,65K Human Machine Interface Module 2.4Inch,HMI Lcd Tft 2.4 Inch Without Touch |
||
Product Description
2.4-inch Without touch COF HMI 2.4” serial port screen 240*320code-free font image
Hardware Feature
2.4” LCD-TFT HMI COF module
320 x 240 screen resolution
RGB 65K true-to-life colours
3584 Byte SRAM
4 MB Flash memory
320 x 240 screen resolution
RGB 65K true-to-life colours
3584 Byte SRAM
4 MB Flash memory
human-machine interface (HMI) GUI development software for
.The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
Extremely Low Power Comsuption in Deep Sleep Mode
When the Deep Sleep Mode is activated, the device's working current is down to 025mA. Your Battery-Powered HMI device will last a longer working time with such a low power comsuption.
FPC wiring pin definition:
1.GND
2.GND
3.NRST
4.NC
5.NC
6.RXD
7.TXD
8.TF_CS
9.SPI_MOSI
10.SPI_CLK
11.SPI_MISO
12.NC
13.3.3V
14.3.3V
