2.8 Spi Tft Module SPI Display Module TFT Display 240x320 2.8 Inch Spi Tft Lcd Ili9341
| Place of Origin | China |
|---|---|
| Model Number | JC2432S028N |
| Minimum Order Quantity | 300 |
| Price | ￥45/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.8inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Without Touch | Name | JC2432S028N |
| External Dimension | 86.00(L)X50.00(W)MM | Product Weight | 48(g) |
| Highlight | SPI Display Module TFT Display 240x320,2.8 Spi Tft Module SPI Display Module,240x320 2.8 Inch Spi Tft Lcd Ili9341 |
||
Product Description

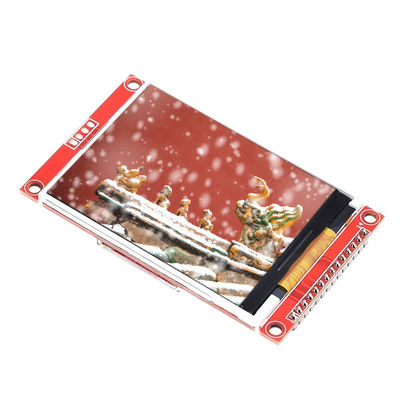

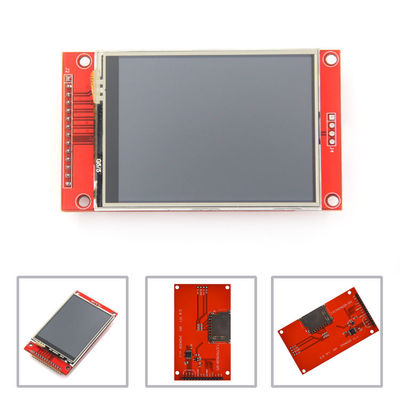

2.8 inch Without Touch SPI LCD TFT Module TFT display 2.8" 240*320 ILI9341 Smart Display Screen
Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information
- Red PCB, 14-pin 2.54-pin interface
- 2.8 inch 2.8 "SPI red module CTC LCD ILI9341 TFT LCD Display module Screen.
- DC 3.3V 2.8 inch TFT LCD Display Module ILI9341 Driver 4 Wire SPI Interface 240x320.
- Industrial quality.
- Long-term stable supply.
- With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
- Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
| Name | Parameter |
| SKU | JC2432S028N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 2.8(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 240*320 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 57.60(L))X43.20(W)MM |

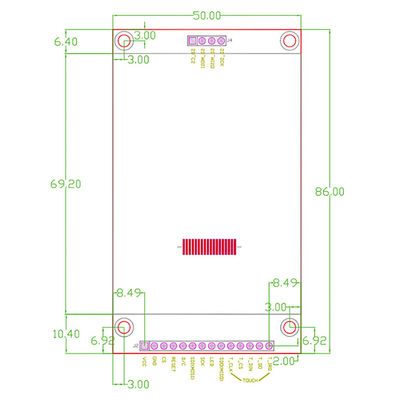

| External dimension | 86.00(L)X50.00(W)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 48(g) |

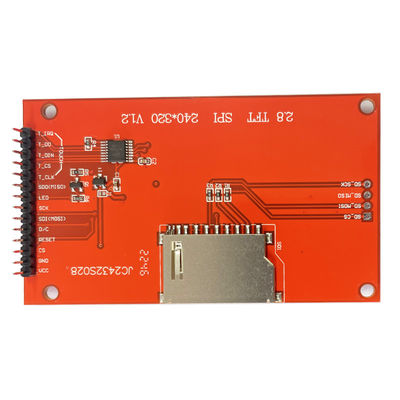

Interface Definition
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | D/C | Control register selection |
| 6 | SDI(MOSI) | Control data transmission |
| 7 | SCK | Clock signal |
| 8 | LED | Backlight control, high level lighting, connected to 3.3V |
| 9 | SDO(MISO) | SPI bus read data signal |
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip selection signal, low-level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
