Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320

Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320

Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320

Model Number: JC2432S024R
MOQ: 300
Price: ￥42/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Size:
2.4inch
Resolution:
240*320
Touch:
Resistance Touch
Name:
JC2432S024R
Driver IC:
ILI9341
Product Weight:
40(g)
Highlight:

SPI Tft Lcd Module Display ILI9341

,

Tft Lcd Module Display 2.4Inch

,

2.4 Inch Tft Lcd Display 240x320

Product Description

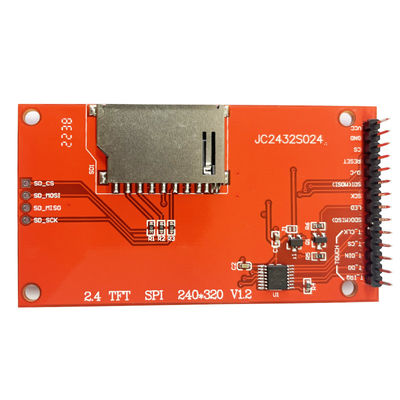

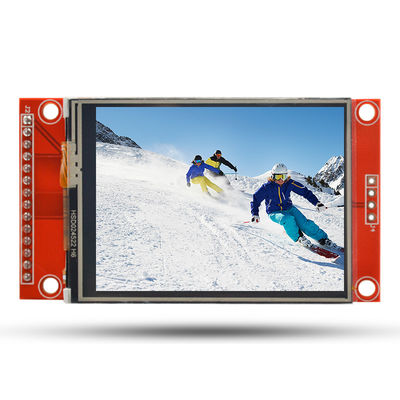

2.4 inch Resistive touch SPI LCD TFT Module 2.4" 240*320 ILI9341 TFT display Module Smart Display Screen





Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320 0

Product Description

The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9341 with a resolution of 240x320 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.

●2.4-inch color screen,support 16-bit 65K color display,display rich colors

●240X320 resolution with optional touch function ·

●Using the SPI serial bus, it only takes a few IOs to illuminate the display

●Easy to expand the experiment with SD card slot ·

●Provide a rich sample program ·

●Military-grade process standards, long

●Provide underlying driver technical support

Product Parameters

Name Parameter
SKU JC2432S024R
Display Color RGB 65K color
Touch mode Resistance touch
Screen Size 2.4(inch)
Type TFT
Driver IC ILI9341
Resolution 240*320 (Pixel)
Module Interface 4-wire SPI

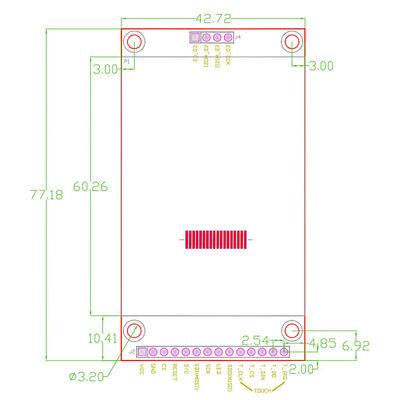

Active Area 48.96(L))X36.72(W)MM
External dimension 77.18(L)X42.72(W)MM
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 3.3V
Visual angle 12:00 o'clock
Product Weight(Package containing) 40(g)

Interface Definition



Number Pin Label Pin Description
1 VCC 5.0 power input
2 GND Power ground
3 CS LCD chip select signal, active low
4 REST LCD reset signal, low level reset
5 D/C Control register selection
6 SDI(MOSI) Control data transmission
7 SLK Clock signal
8 LED Backlight control, high level lighting, connected to 3.3V
9 SDO(MISO) SPI bus read data signal
10 T_CLK Touch SPI bus clock signal
11 T_CS Touch screen chip selection signal, low-level enable
12 T_DIN Touch SPI bus input
13 T_DO Touch SPI bus output
14 T_IRQ Touch screen interrupt signal, low level when touch is detected
