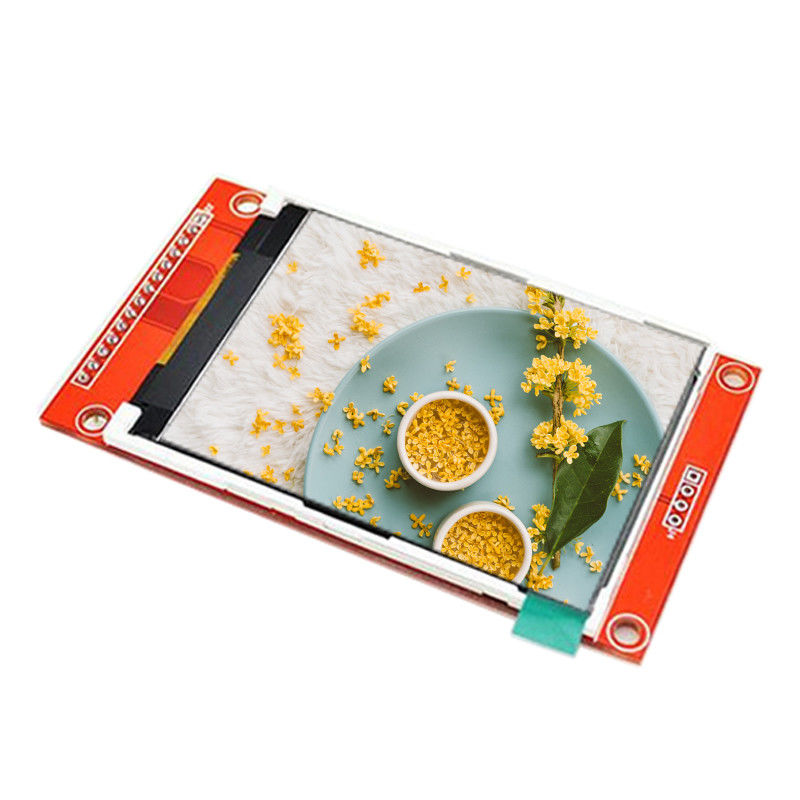

240x320 SPI Display Module ILI9341 Spi Display TFT Display Module
| Place of Origin | China |
|---|---|
| Model Number | JC2432S024N |
| Minimum Order Quantity | 300 |
| Price | ￥37/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.4inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Without Touch | Name | JC2432S024N |
| External Dimension | 77.18(L)X42.72(W)MM | Product Weight | 35(g) |
| Highlight | 240x320 SPI Display Module,SPI Display Module ILI9341,ILI9341 Spi Display TFT Display Module |
||
Product Description
4 inch Without Touch SPI LCD TFT Module 2.4" 240*320 ILI9341 TFT display Module Smart Display Screen
Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information
◎Size: 2.4 inch SPI serial bus
◎Resolution: 240*320
◎51/AVR/STM32 Driver,Provide initialization code
◎2.8 inch SPI LCD module, without touch only 4 IO driver, with touch only
◎9 IO driver, resolution 240*320

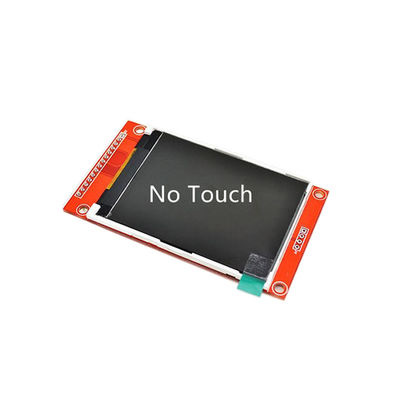

With and without touch, two options.
Package Included:
1× 2.8 inch SPI TFT LCD Module 240*320 with touch or without touch
| Name | Parameter |
| SKU | JC2432S024N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 2.4(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 240*320 (Pixel) |
| Module Interface | 4-wire SPI |

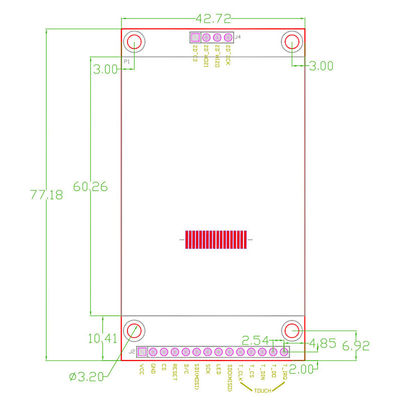

| Active Area | 48.96(L))X36.72(W)MM |
| External dimension | 77.18(L)X42.72(W)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 35(g) |

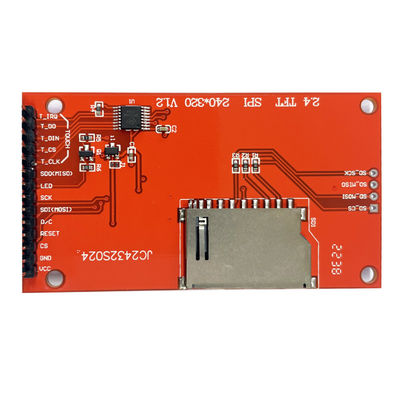

Interface Definition
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | D/C | Control register selection |
| 6 | SDI(MOSI) | Control data transmission |
| 7 | SLK | Clock signal |
| 8 | LED | Backlight control, high level lighting, connected to 3.3V |
| 9 | SDO(MISO) | SPI bus read data signal |
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip selection signal, low-level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
